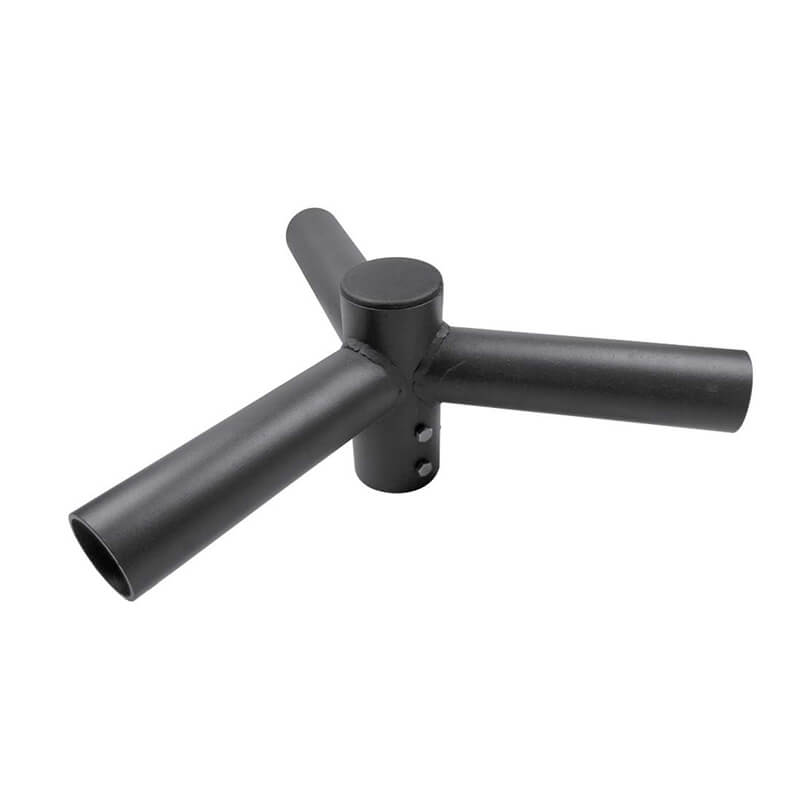

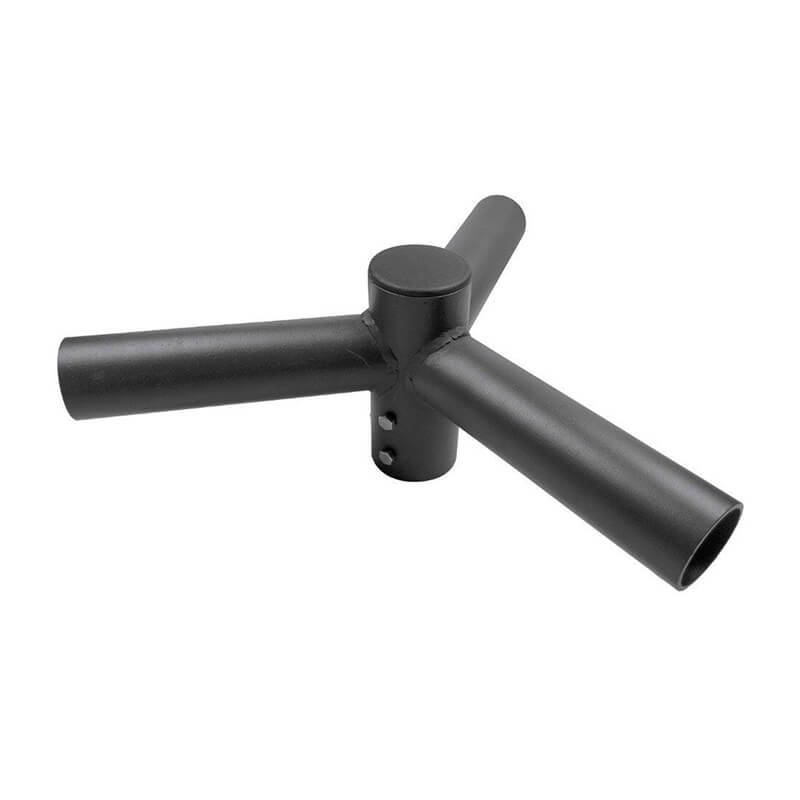

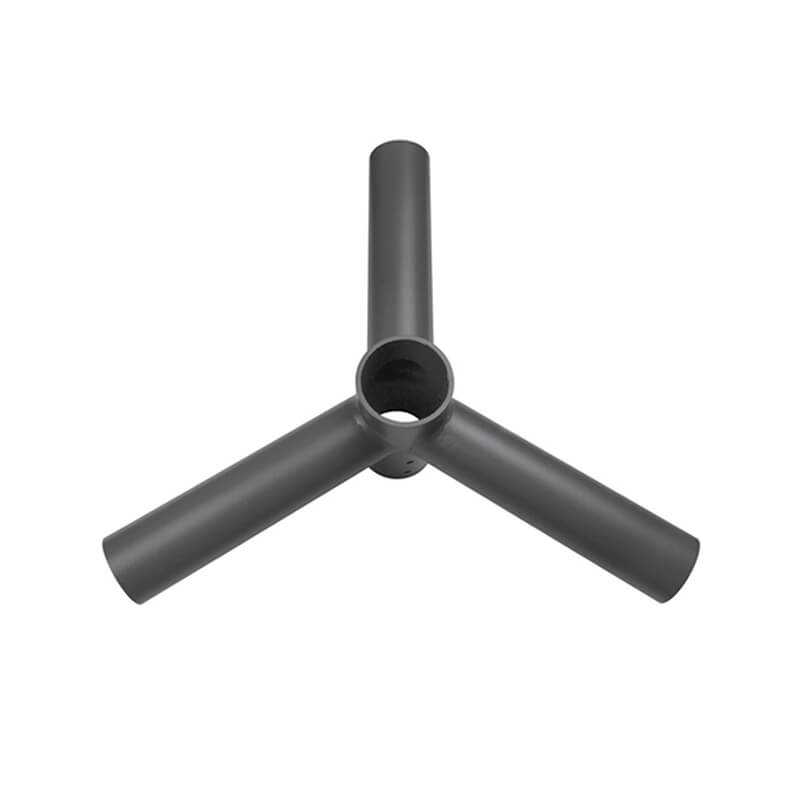

Triple Spoke Bracket 120° Arms, Round Light Pole Top Tenon Adapter for 3 LED Parking Lot Shoebox Fixtures

Model: KLRE3120-B
4" round pole bracket,
carbon steel, gloss bronze
Base: 4xM8 bolts
Tennon: 3x horizontal tennon,
Triple 120D,OD60 x HT4"



  • Overview
  • Applications
  • Download
  • Packing & Shipping

Product Description:

Triple 120 Degree Horizontal Tenon Adapter, Triple Spoke Bracket for 2-3/8 inch Slip Fitter Light, Available for 2.5 inch Round Pole, for LED Shoebox Pole Light, Flood Light


The bottom portion of this bracket is 2-1/2 inch in diameter (inside diameter) allowing it to slip fit over any 2-3/8” tenon regardless of the shape of the pole. Each arm is 2-3/8” in outside diameter allowing any light fixture with a standard 2-3/8” slip fitter to fit over. If you require the bottom portion to fit over a 2-7/8” or 4” tenon, please contact one of our sales engineers so that we can provide you a quote for customizing our brackets. 4 set screws are provided to secure this bracket on the pole.


4" round pole bracket,carbon steel,gloss bronze/ Base:6 Screw holes for 3/8''-16/ Tenno: 3 x horizontal tennon,triple 120D,OD60 x HT10"


·Triple 120 Degree Horizontal Tenon Adapter. Three fixtures can be mounted to the Round External Mount Horizontal Tenon and adjusted horizontally.

·The adapter bracket is designed to mount over 2-3/8” (60mm) outside diameter vertical tenon.

·Hardware screws for mounting is including in package.

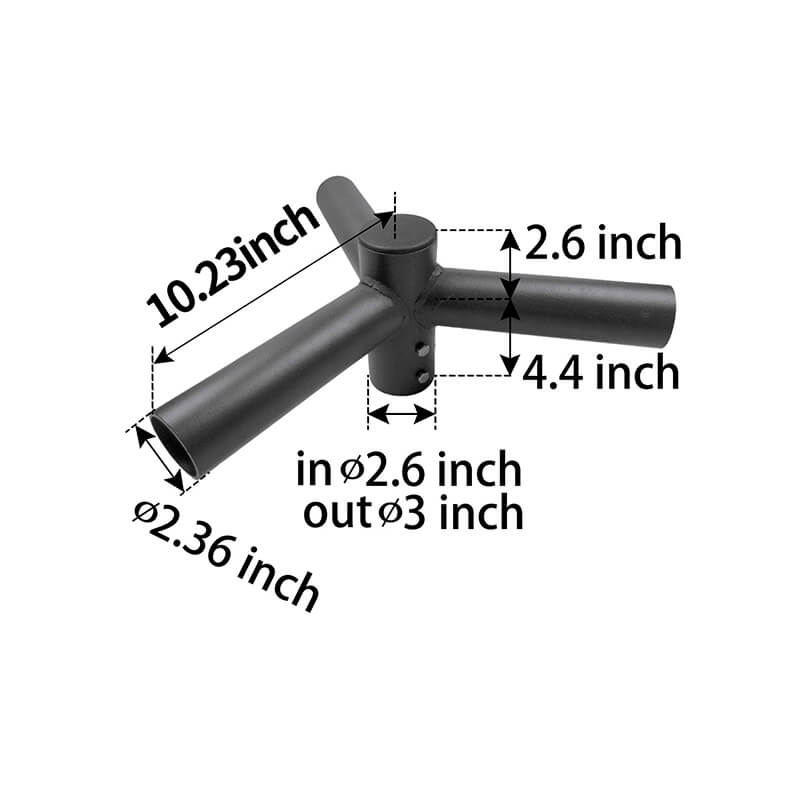

·Bottom Interior Diameter is 2.67 inch, Bottom exterior Diameter is 3 inch.

·Tenon arm length: 11.8 inch.

Dimension:
Triple Spoke Bracket, 120° Arms.jpg


Applications:
Shoebox Light
Parking Lot lights
Flood Lights

Packing:

Packed in cartons, the same type of products are packed together or different products packaged together.

Transportation:

For LED lights export, our main modes of transportation are air and ocean, the transit time will be 4-10 days for air or 25-30 days for ocean.

International express includes 4 types: FedEx, DHL, TNT, UPS.

Domestic express includes SF, Sto, YTO, ZTO, Baishi, and Yunda Express, Transit time 3-5 days.
