CE/RoHS, CB, Tuv, SAA, ENEC Certificates.
IP65 Rated.
200-240Vac.
Microwave motion sensor.
3 hours emergency battery backup.
up to 140lm/w.
Product Description:

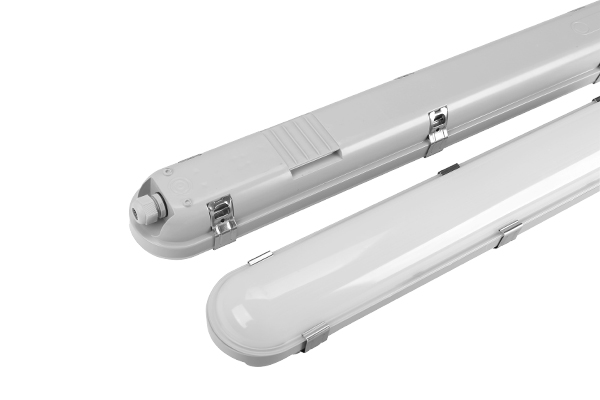

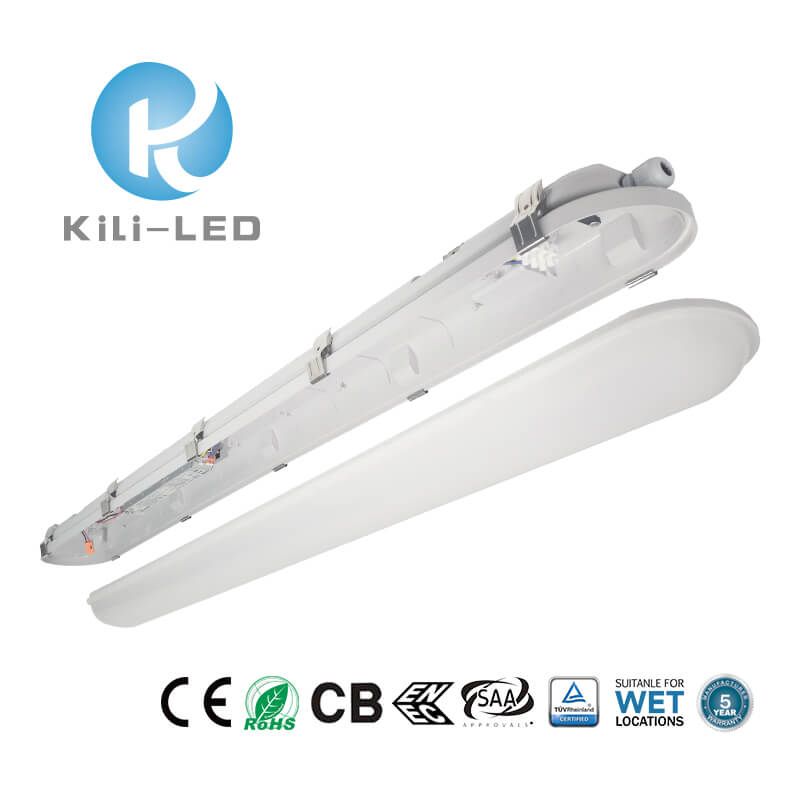

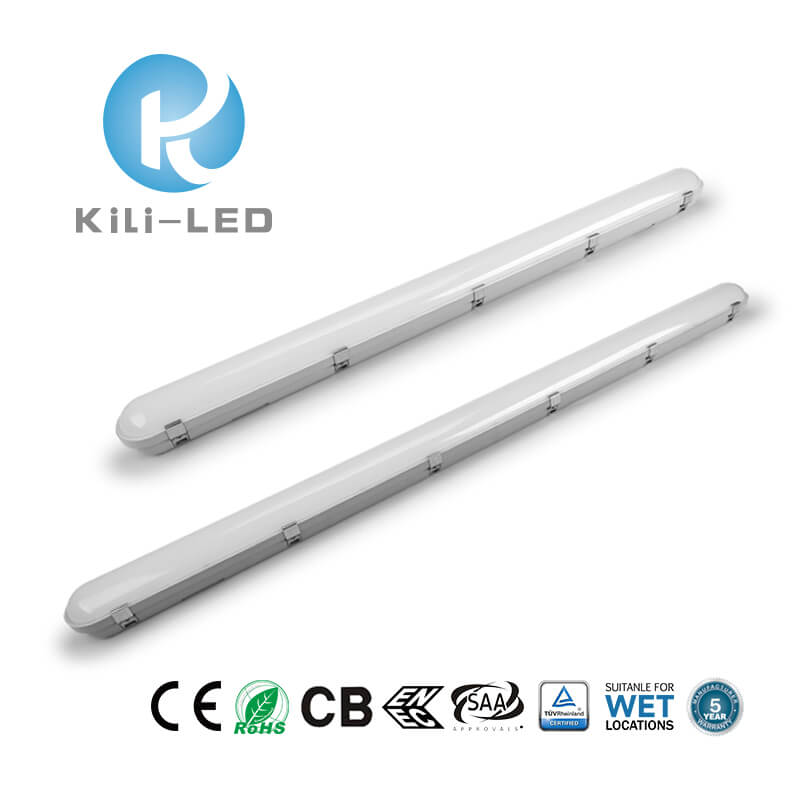

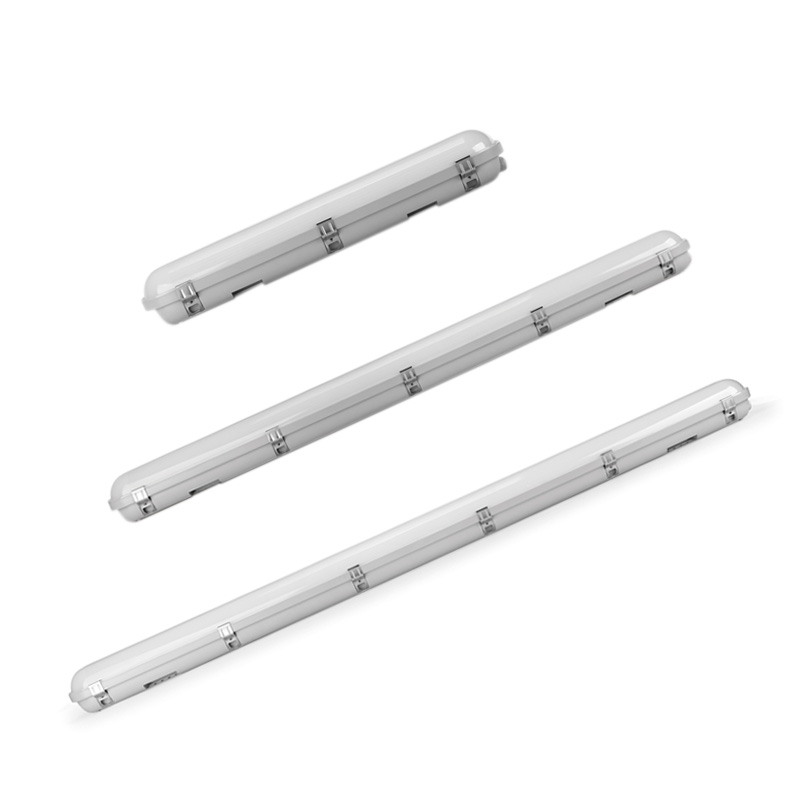

VFV led tri proof lights revolutionary IP65 weather-proof LED fittings delivering class-leading performance. The advanced design of polycarbonate diffuse integrated with lighting tray providing significant savings on installation and maintenance.
Specification:
Specification | Dimension Carton (mm) | Power | Total Light Output (lm) | Efficacy (lm/w) | Lumens | Net Weight (kg) | QTY Carton (piece) | Weight Carton (kg) |
VFVS2F-XXXXXX | 630x300x290 | 20W |
2,570 lm(Opal) 2,780 lm(Clear) |
128.5 139.5 |
2570lm | 0.93 | 9 | 9.6 |
VFVD2F-XXXXXX | 630x275x305 | 30W |
3,850 lm(Opal) 4,175 lm(Clear) |
128.3 139.2 |
3850lm | 1.11 | 6 | 7.6 |
VFVS4F-XXXXSX | 1230x300x290 | 30W |
3,850 lm(Opal) 4,175 lm(Clear) |
129.4 139.5 |
3850lm | 1.68 | 9 | 16.9 |
VFVS4F-XXXXPX | 1230x300x290 | 40W |
5,176 lm(Opal) 5,580 lm(Clear) |
129.4 139.5 |
5176lm | 1.68 | 9 | 16.9 |
VFVD4F-XXXXXX | 1230x275x305 | 50W |
6,430 lm(Opal) 6,990 lm(Clear) |
128.6 139.8 |
6430lm | 2.1 | 6 | 14.4 |
VFVS5F-XXXXXX | 1530x300x200 | 60W |
7,750 lm(Opal) 8,210 lm(Clear) |
129.2 136.8 |
7750lm | 1.98 | 6 | 13.7 |
VFVD5F-XXXXXX | 1530x405x210 | 70W |
9,010 lm(Opal) 9,750 lm(Clear) |
128.7 139.3 |
9010lm | 2.78 | 6 | 18.6 |
Beam Angle: 120° CRI: >80
Voltage: 200-240VAC Lens: Frost/clearly
Sensor: option Dimming: Option(0-10V)

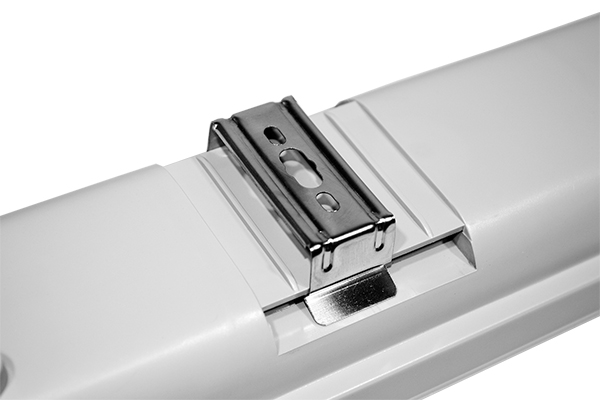

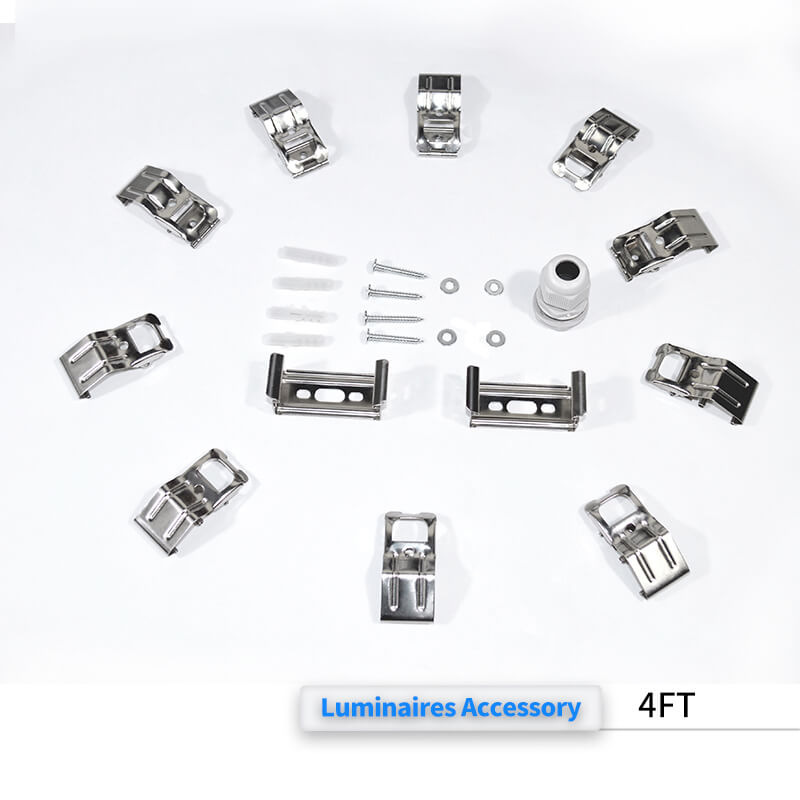

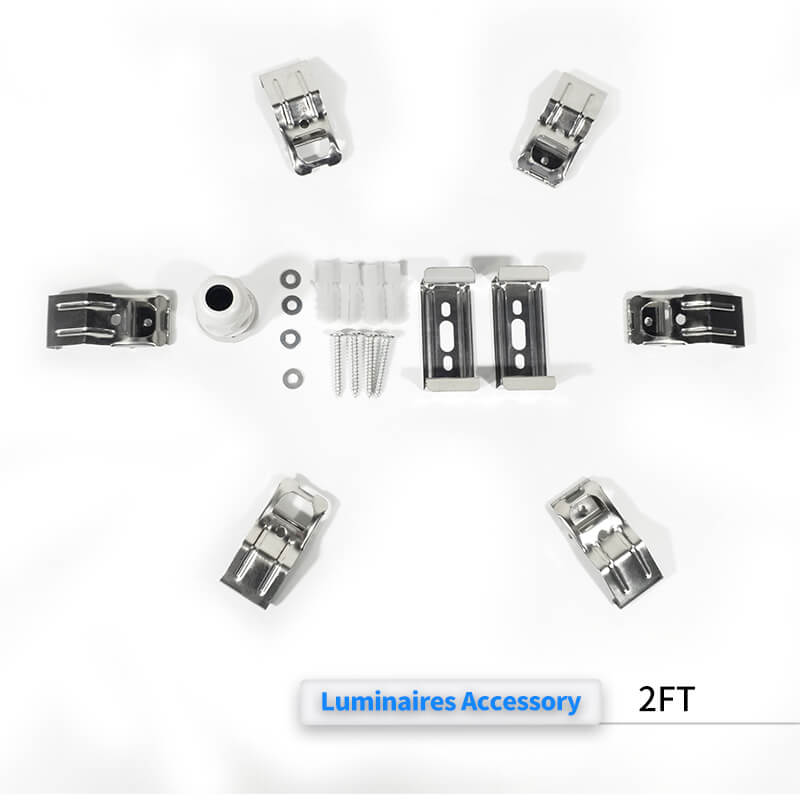

Installation: Surface Mount/Chain Operating temperature: -20°C up to 45°C
Color Temperature: 3000K/4000K/5000K/5500K/6000K/6500K
Warranty: 5 Years Driver Type: ENEC Approved Flicker-Fredd
LED Type: LM80 SMD2835 Rated Life: 50,000 hours
Impact Rating: IK08
Applications:
Wet areas / Outside walkways / Warehouses / Storage areas / Industrial units / Farm buildings / Garages / Workshops / Stairwells / Factories / Car parks / Changing rooms
Resistant to impace and many chemical agents, but for suitability in specific environments please take specialist advice.
