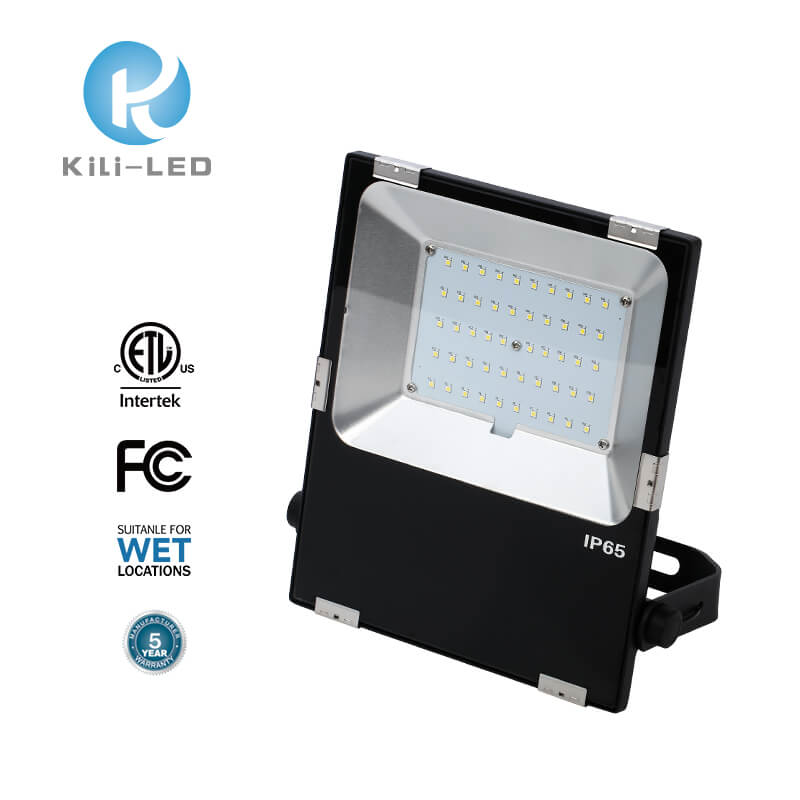

LED Flood Lights
Product description

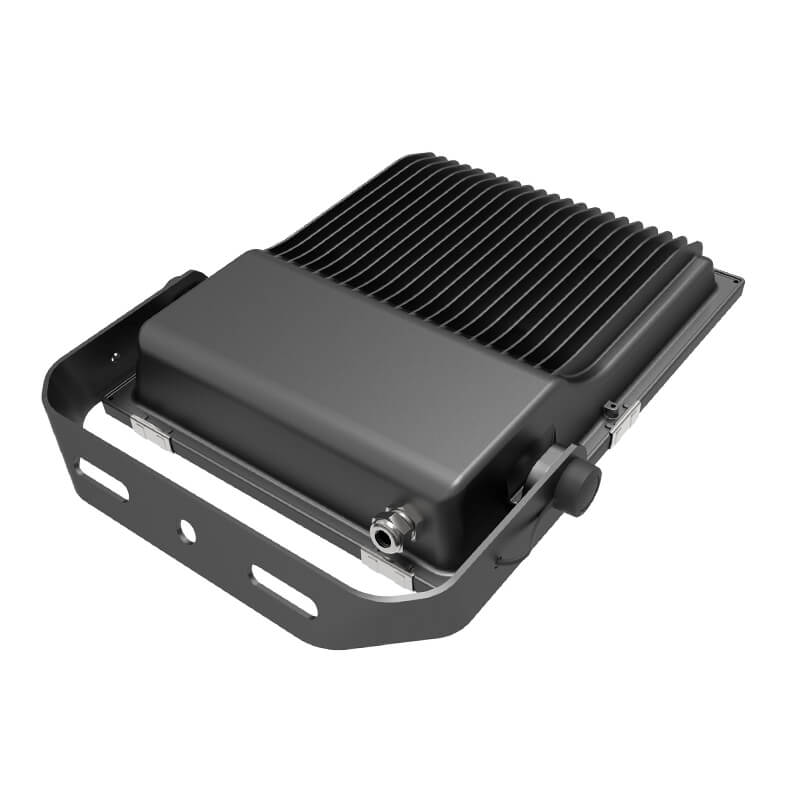

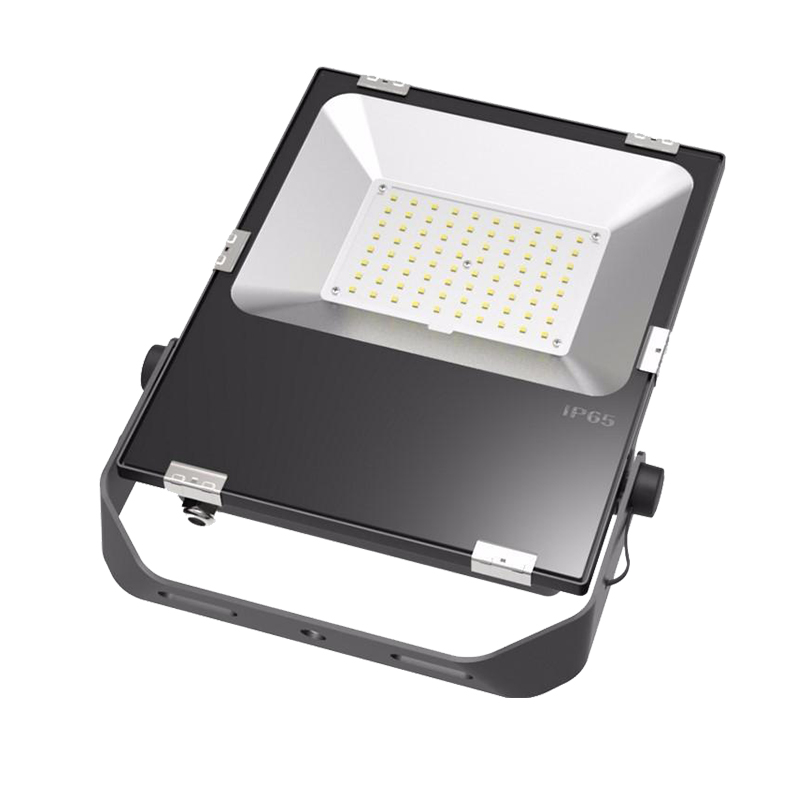

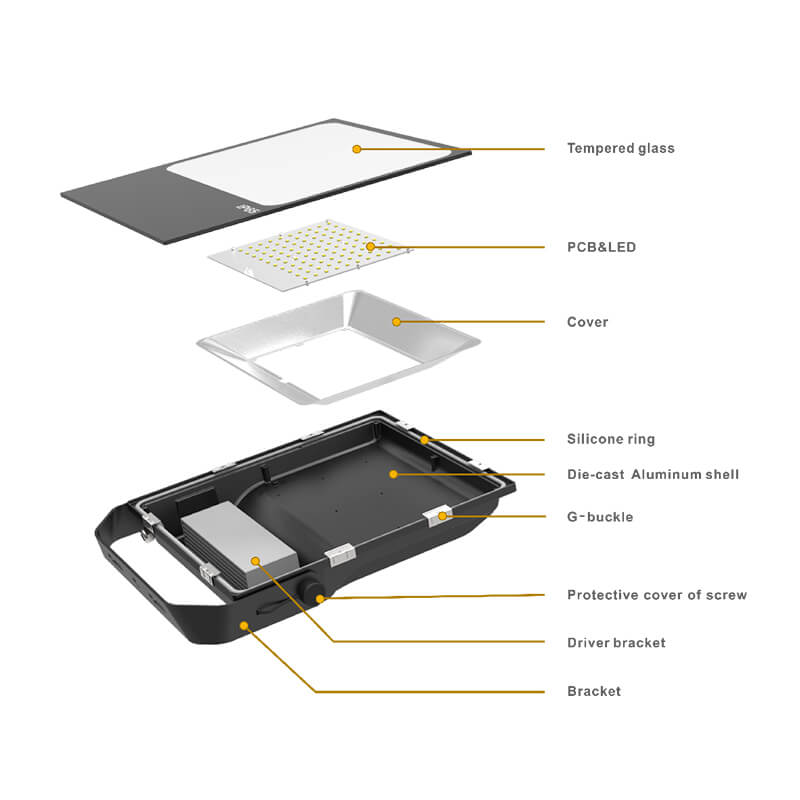

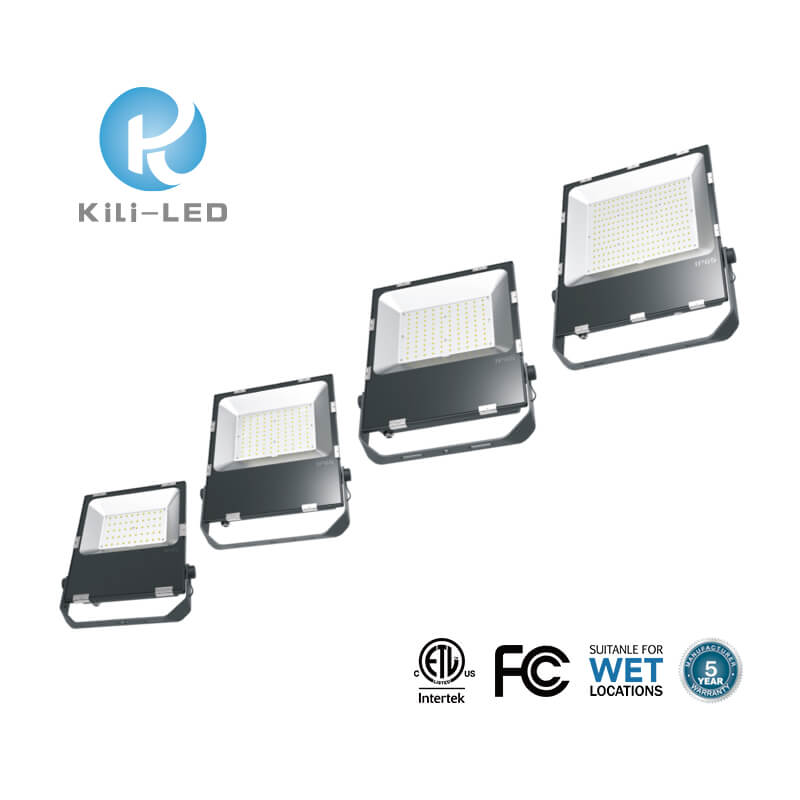

The outdoor LED flood light fixtures is designed as efficient, energy-saving replacement for metal halide and high-pressure sodium flood lighting fixture. The commercial LED flood lights ultra slim streamlined powder coated aluminum die-cast housing provides very good heat dissipation and assures a long lifespan. The house flood lights black aluminum U-bracket is 270° adjustable and fixed with stainless steel screws with protective cover. The tempered glass front is 4mm thick with a high transparency rate and black finish around the light output area. Completely sealed, dust and water proof, full range from 20W to 200W and 100-277V or 347-480V, the outdoor flood lights is suitable for industrial and commercial applications, such as walls, driveways, buildings, security lighting, porch lighting, area flood lighting and other indoor and outdoor lighting.



  • Features
  • Specification
  • Dimension
  • Transportation

Product Features:

. ETL/cETL listed for wet locations, IP65 rated

. 130 lumens per watt

. 100-277V or 347-480V universal voltage

. 0-10V dimming standard, 10-100%

. Ultra slim design, stylish and classic

. Input DMX signal by DMX512/1990 standard optional



FD Architectural Flood Light

ITEM SPECIFICATION KLFD020HU50K KLFD050HU50K KLFD100HU50K KLFD150HU50K KLFD200HU50K KLHVFD050HU50K KLHVFD100HU50K KLHVFD150HU50K KLHVFD200HU50K
Wattage(W) 20W 50W 100W 150W 200W 50W 100W 150W 200W
Lumens Delivered (lm) 2600lm 6500lm 13000lm 20000lm 26000lm 6500lm 13000lm 20000lm 26000lm
Efficacy (lm/W) 110lm/w 130lm/w 130lm/w 130lm/w 130lm/w 130lm/w 130lm/w 130lm/w 130lm/w
CRI >70 >70 >70 >70 >70 >70 >70 >70 >70
Color Temperature 3000K/4000K/5000K/R/G/B 3000K/4000K/5000K/R/G/B/RGB 3000K/4000K/5000K/R/G/B/RGB 3000K/4000K/5000K/R/G/B/RGB 3000K/4000K/5000K/R/G/B/RGB 3000K/4000K/5000K/R/G/B 3000K/4000K/5000K/R/G/B 3000K/4000K/5000K/R/G/B 3000K/4000K/5000K/R/G/B
GENERAL PERFORMANCE Beam Angle 120° 10°/15°/35°/60°/90°/120° 10°/15°/35°/60°/90°/120° 10°/15°/35°/60°/90°/120° 10°/15°/35°/60°/90°/120° 10°/15°/35°/60°/90°/120° 10°/15°/35°/60°/90°/120° 10°/15°/35°/60°/90°/120° 10°/15°/35°/60°/90°/120°
L70 More than 50000hours More than 50000hours More than 50000hours More than 50000hours More than 50000hours More than 50000hours More than 50000hours More than 50000hours More than 50000hours
Power Factor  0.98at 100VAC 0.90 at 277VAC 0.98at 100VAC 0.90 at 277VAC 0.98at 100VAC 0.90 at 277VAC 0.98at 100VAC 0.90 at 277VAC 0.98at 100VAC 0.90 at 277VAC >0.9 >0.9 >0.9 >0.9
ELECTRICAL Input Voltage 100-277VAC 100-277VAC 100-277VAC 100-277VAC 100-277VAC 347-480VAC 347-480VAC 347-480VAC 347-480VAC
Housing Die-cast aluminum body(Black). Glass diffuse  Die-cast aluminum body(Black). Glass diffuse Die-cast aluminum body(Black). Glass diffuse Die-cast aluminum body(Black). Glass diffuse Die-cast aluminum body(Black). Glass diffuse Die-cast aluminum body(Black). Glass diffuse Die-cast aluminum body(Black). Glass diffuse Die-cast aluminum body(Black). Glass diffuse Die-cast aluminum body(Black). Glass diffuse
Installation knuckle mount knuckle mount knuckle mount knuckle mount knuckle mount knuckle mount knuckle mount knuckle mount knuckle mount
PHYSICAL Operating temperature -30℃ Up to 50℃ (-22℉up to122℉). -30℃ Up to 50℃ (-22℉up to122℉). -30℃ Up to 50℃ (-22℉up to122℉). -30℃ Up to 50℃ (-22℉up to122℉). -30℃ Up to 50℃ (-22℉up to122℉) -30℃ Up to 50℃ (-22℉up to122℉). -30℃ Up to 50℃ (-22℉up to122℉). -30℃ Up to 50℃ (-22℉up to122℉). -30℃ Up to 50℃ (-22℉up to122℉).
Environment damp/wet locations damp/wet locations damp/wet locations damp/wet locations damp/wet locations damp/wet locations damp/wet locations damp/wet locations damp/wet locations
Warranty 5 years 5 years 5 years 5 years 5 years 5 years 5 years 5 years 5 years
CERTIFICATION Certification ETL/cETL,     ETL/cETL,   ETL/cETL,  ETL/cETL,  ETL/cETL, ETL/cETL ETL/cETL, ETL/cETL, ETL/cETL,





For LED lights export, our main modes of transportation are air and ocean, the shipping time will be 3-7 days for air or 25-30 days for ocean.
