4″ 90° Twin Horizontal Tenon, Tenon Adapter for 4 Inch Square Poles with 2 Horizontal 90 Degree Tenons

Model: KLSHT2090-B
4" square pole bracket,
carbon steel, gloss bronze
Base: 4xM8 bolts
Tennon: 2x horizontal tennon,
Twin 90D, OD60 x HT4"
  • Overview
  • Applications
  • Download
  • Packing & Shipping

Product Description:

Tenon Adapter for 4 Inch Square Poles with 2 Horizontal 90 Degree Tenons


4" square pole bracket, carbon steel, gloss bronze/    Base: 4 Screw holes

for 3/8''-16/Tennon: 2x horizontal tennon, 180D, OD60 x HT4"


This tenon adapter has two 2 horizontal 2-3/8 inch tenons and is designed to fit 4 inch square poles. Standard light fixtures with 2-3/8 inch slip fitter will fit this adapter. Regardless of the gauge and material of the pole, the bottom portion of this adapter slides inside of the pole (internal fit). This tenon adapter is available in a standard dark bronze finish. Other powder coat finish options are available at a surcharge.

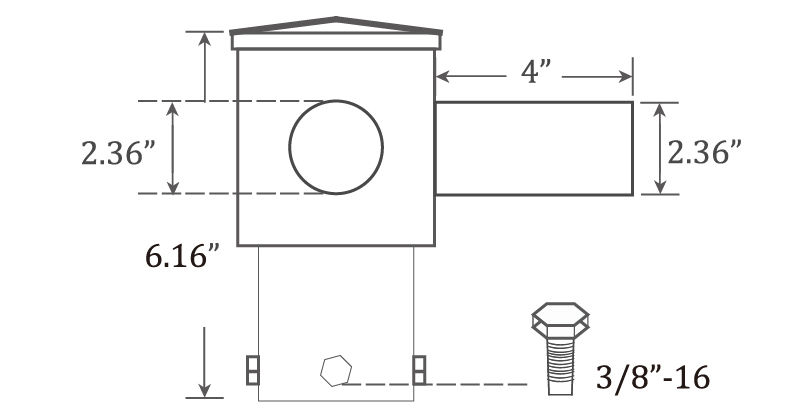

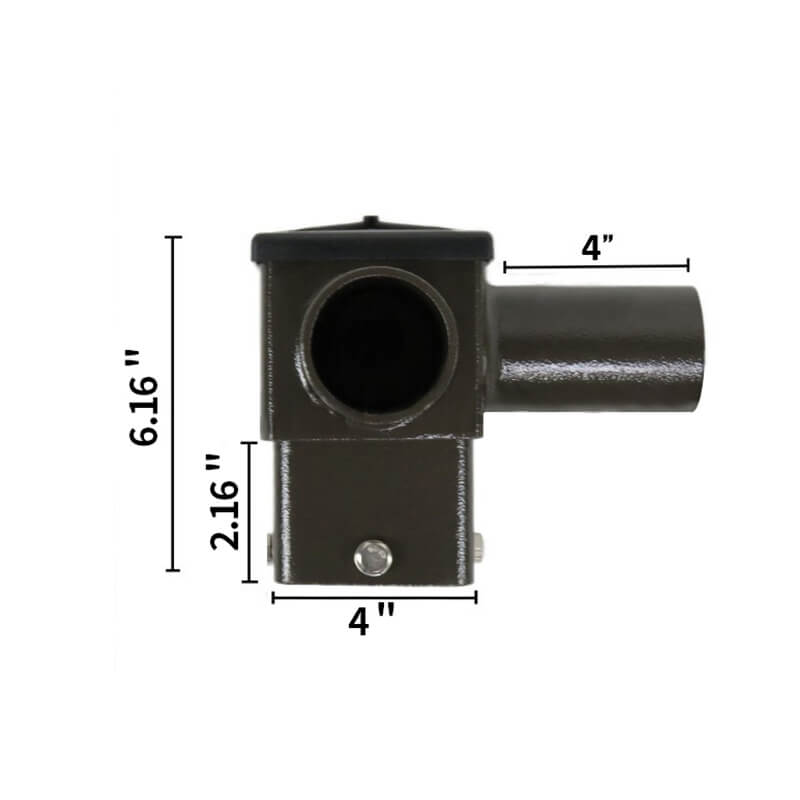

Dimension:
4″ 90° Twin Horizontal Tenon.jpg


Applications:
Shoebox Light
Parking Lot lights
Outdoor Light Fixtures

Packing:

Packed in cartons, the same type of products are packed together or different products packaged together.

Transportation:

For LED lights export, our main modes of transportation are air and ocean, the transit time will be 4-10 days for air or 25-30 days for ocean.

International express includes 4 types: FedEx, DHL, TNT, UPS.

Domestic express includes SF, Sto, YTO, ZTO, Baishi, and Yunda Express, Transit time 3-5 days.
