LED Bulbs For Enclosed Fixtures
Product description

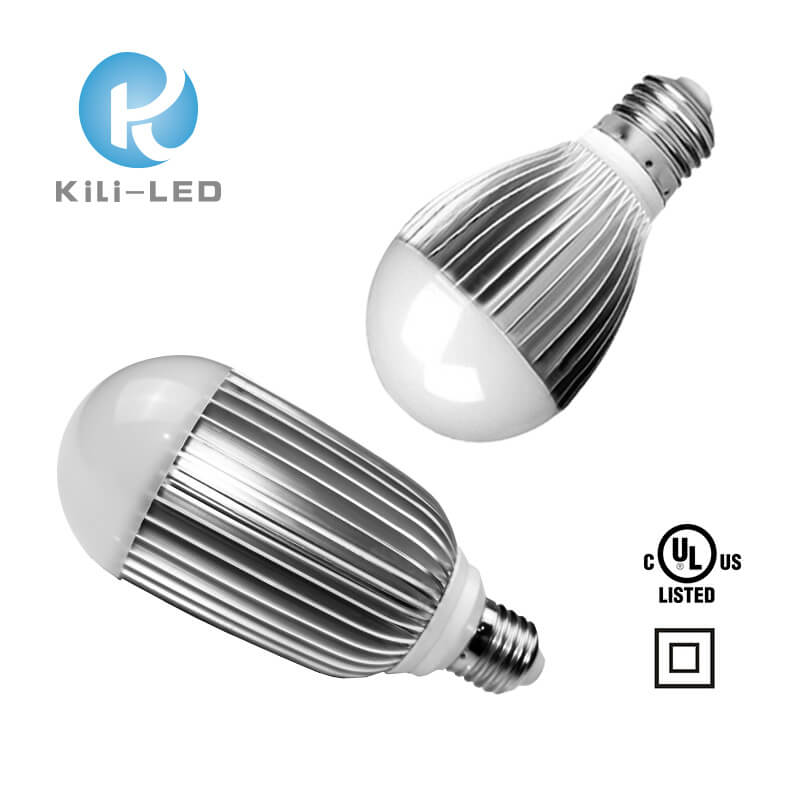

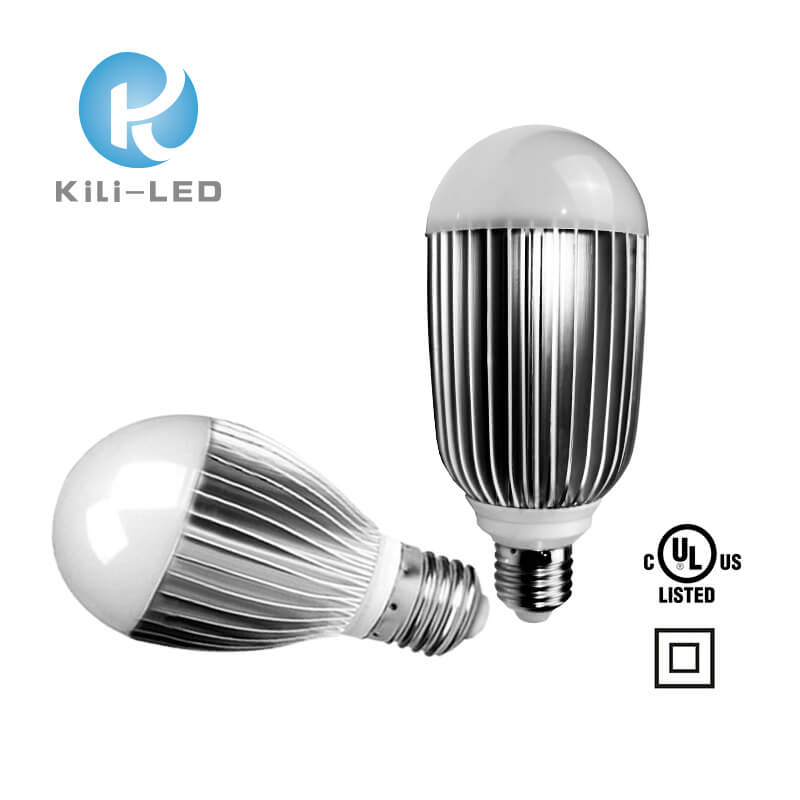

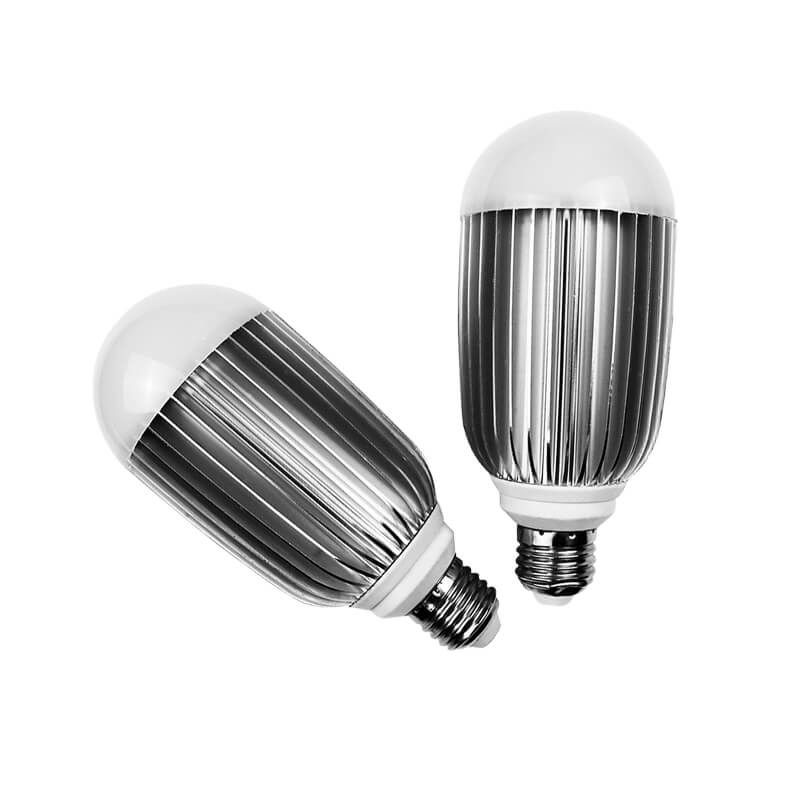

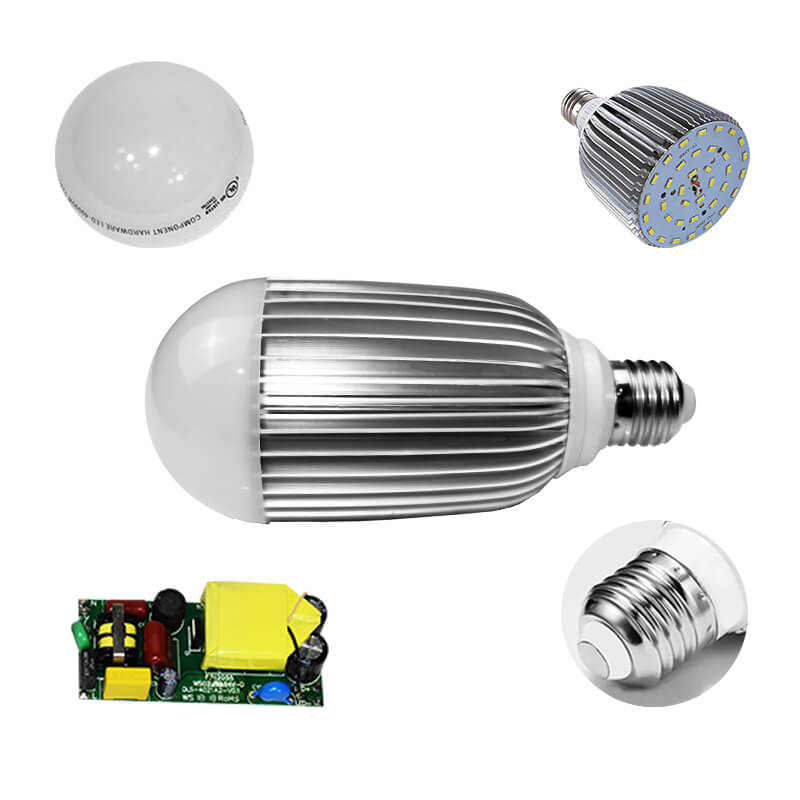

The Class C UL listed 7W and 12W Self-Ballasted LED bulbs for enclosed fixtures come in a length of 5.63" and 6.5". With high efficacy of 110LPW, the best LED bulbs are suitable to replace a 60 watt and 100 watt incandescent fixture. They are built for use in harsh environments, with a wide operating temperature range -40℉-185℉(-40℃-85℃), and integrated 257℉(125℃) thermal switch protection, turning off the bulb on 257℉(125℃) and re‐start on 188.6℉(87℃). Working on 185℉(85℃), bulbs provide 5,000hrs lifetime; on 140℉(60℃), they can provide more than 30,000hrs life time. All components’ work temperature is up than 257℉(125℃). The outdoor LED bulbs can be multiply used in totally enclosed, recessed luminaries, double insulated. They’re the ideal products for both indoor and outdoor applications such as explosion-proof luminaries, LED bulbs for home, warehouses luminaries, special industry lighting.



  • Features
  • Specification
  • Dimension
  • Transportation

Product Features:
. Class C UL listed for damp locations

. 110 lumens per watt

. 85-277V universal voltage

. 185℉(85℃) Ambient Temperature

. Integrated 257℉(125℃) thermal protection & 188.6℉(87℃) re‐start

. As enclosed retrofit bulb for cooking place luminaries






KLTOP Post Top Luminaires

ITEM SPECIFICATION KLTOPA50-XXKFP KLHVTOPA50-XXKFP KLTOPB50-XXKCP KLHVTOPB50-XXKCP KLTOPC70-XXKCP
Wattage(W) 50W 50W 50W 50W 70W
Lumens Delivered (lm) 4750lm 4750lm 5000lm 5000lm 9000lm
Efficacy (lm/W) 95lm/w 95lm/w 100lm/w 100lm/w 130lm/w
CRI >70 >70 >70 >70 >70
Color Temperature 3000K/4000K/5000K 3000K/4000K/5000K 3000K/4000K/5000K 3000K/4000K/5000K 3000K/4000K/5000K
GENERAL PERFORMANCE Beam Angle 120° 120° 120° 120° 120°
L70 More than 50000hours More than 50000hours More than 50000hours More than 50000hours More than 50000hours
Power Factor  >0.9 >0.9 >0.9 >0.9 >0.9
ELECTRICAL Input Voltage 100-277VAC 100-277VAC 100-277VAC 100-277VAC 100-277VAC
Housing Die-cast aluminum body. PC cover diffuse  Die-cast aluminum body. PC cover diffuse  Die-cast aluminum body. PC cover diffuse  Die-cast aluminum body. PC cover diffuse  Die-cast aluminum body. PC cover diffuse
Installation  Surface Mount  Surface Mount  Surface Mount  Surface Mount  Surface Mount
PHYSICAL Operating temperature -30℃ Up to 50℃ (-22℉up to122℉). -30℃ Up to 50℃ (-22℉up to122℉). -30℃ Up to 50℃ (-22℉up to122℉). -30℃ Up to 50℃ (-22℉up to122℉). -30℃ Up to 50℃ (-22℉up to122℉).
Environment damp/wet locations damp/wet locations damp/wet locations damp/wet locations damp/wet locations
Warranty 5 years 5 years 5 years 5 years 5 years
CERTIFICATION Certification ETL/cETL,     ETL/cETL,   ETL/cETL,   DLC  ETL/cETL,   CE ROHS






For LED lights export, our main modes of transportation are air and ocean, the shipping time will be 3-7 days for air or 25-30 days for ocean.
