(WPMN) LED Mini Wall Pack
thumb
thumb
thumb
thumb
thumb
thumb

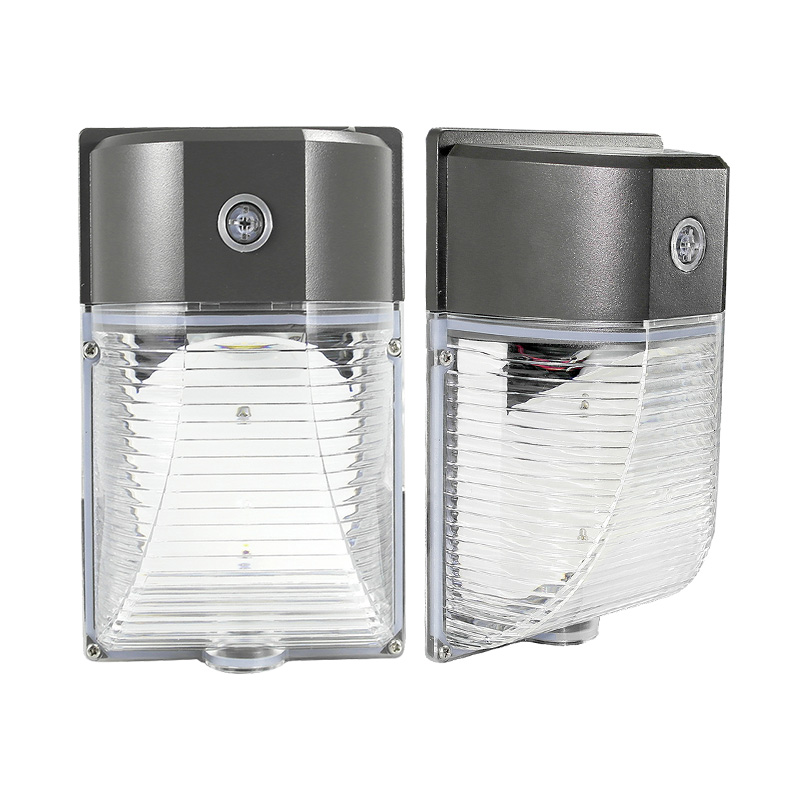

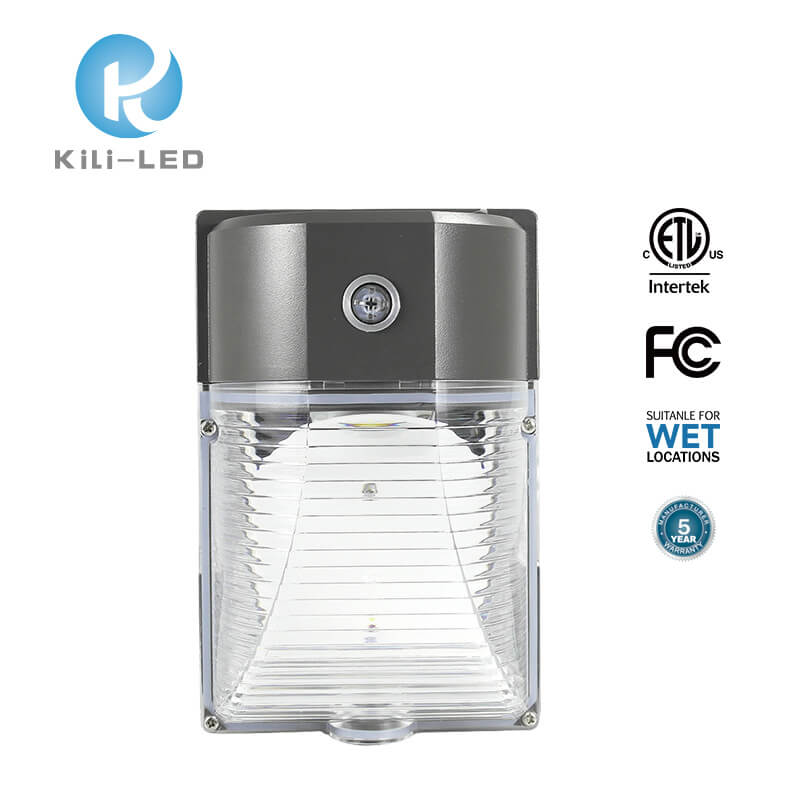

IP65 Mini Wall Pack With Photocell Sensor, 15W 25W 30W

ETL/cETL listed, FCC.
105lm/W.
100-277VAC.
Photocell Sensor is standard.



  • Overview
  • Applications
  • Download
  • Packing & Shipping


Product Description:

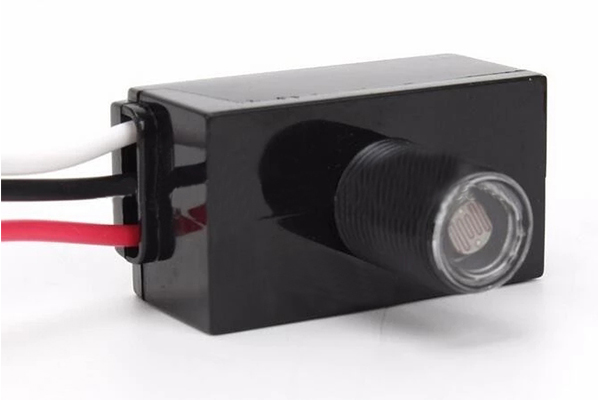

With a built-in photocell, a die-cast aluminum housing, and a frosted/clear polycarbonate lens, the mini wall pack is a versatile and durable outdoor luminaire. The 120V built-in photocell automatically turns the light on at dusk and off at dawn for convenience and energy savings. Consume 15/25/30 watts and replace existing 100 watt traditional metal halide LED wall pack fixtures for more energy and cost savings. Switch to LED wall pack lights for less costs and more energy savings and longer rate life for outdoor commercial applications.

Specification:

Specification Wattage(W) Lumens Delivered (lm)
KLWPMN015-XXXFX 15W 1800lm
KLWPMN025-XXXFX 25W 3000lm
KLWPMN030-XXXFX 30W 3600lm


General features:

Efficacy: 120lm/W                                                                                                  CRI: >70

Color Temperature: 3000K/4000K/5000K                                                             Life time: >50,000 hours

Power Factor: 0.98at 100VAC 0.90 at 277VAC                                                      Input Voltage: 100-277VAC

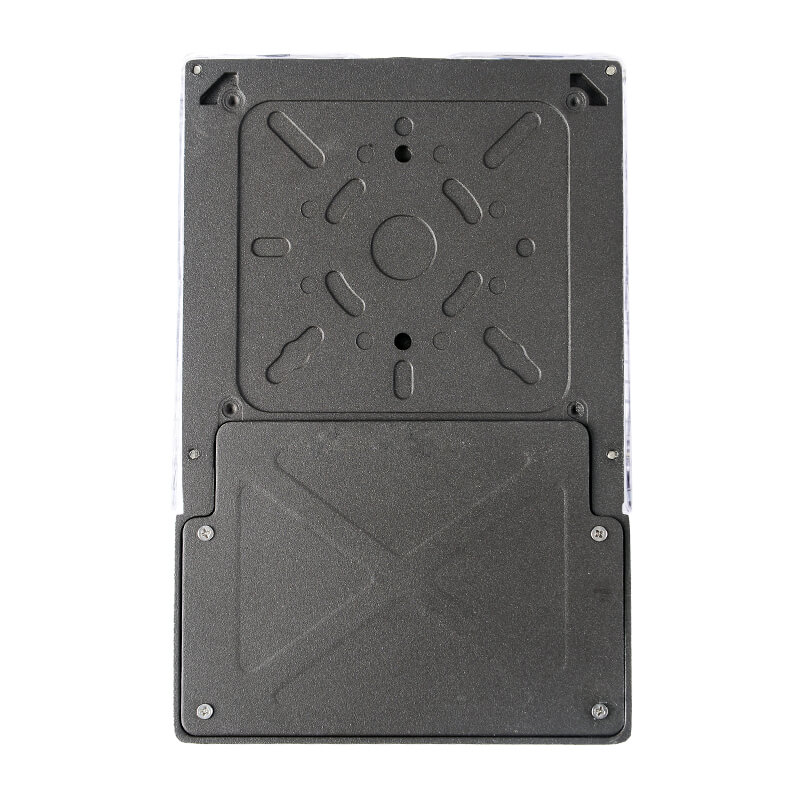

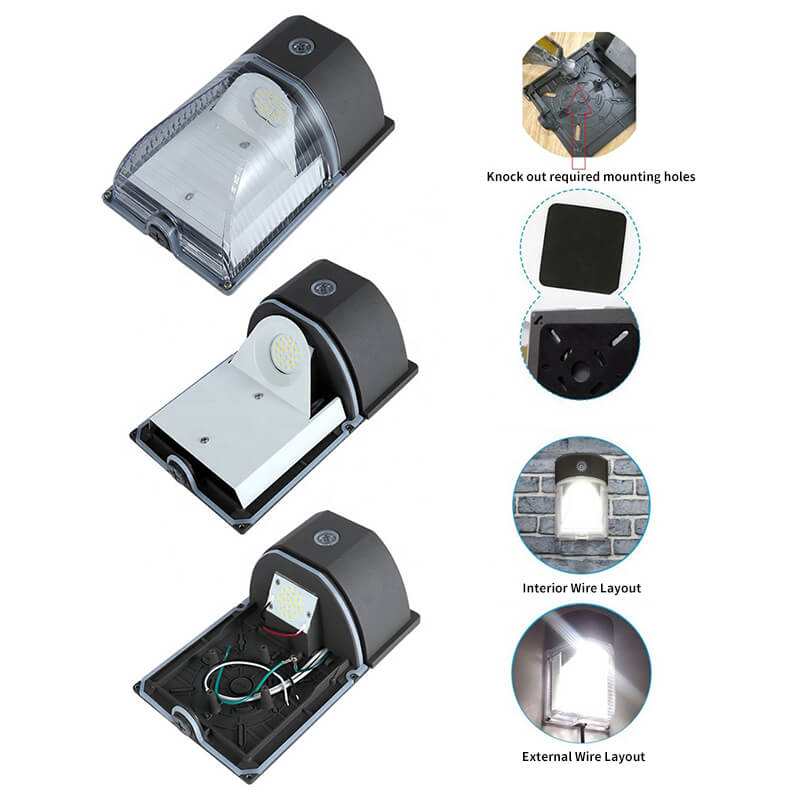

Housing: Die-cast aluminum body(Bronze/Black). PC diffuse                              Installation: Recessed outlet box or wall surface

Operating temperature: -30℃ Up to 50℃ (-22℉up to122℉).                             Environment: damp/wet locations

Warranty: 5 years                                                                                                  Certification: ETL/cETL


Applications:

Wet areas / Outside walkways / Garages / Building lighting / Packing lot lighting / Entryway / Storage warehouse / Security lighting.



Packing:

Packed in cartons, the same type of products are packed together or different products packaged together.

Transportation:

For LED lights export, our main modes of transportation are air and ocean, the transit time will be 4-10 days for air or 25-30 days for ocean.

International express includes 4 types: FedEx, DHL, TNT, UPS.

Domestic express includes SF, Sto, YTO, ZTO, Baishi, and Yunda Express, Transit time 3-5 days.
