(WPSL-B) Slim LED Full Cutoff Wall Pack

IP65 Waterproof Slim LED Full Cutoff Wall Pack, 25W to 120W, Corrosion-Proof And Long Lifespan

ETL/cETL, DLC Listed, CE, FCC.

IP65 Waterproof, IK08.

Top grade LED chips. High lumen output and long lifespan.

High luminous efficiency, excellent thermal diffusivity, easy installation.

Die-cast aluminum housing, fully sealed to be dirt and bug proof.

Light transmission glass lens.
Send inquiry Now
  • Overview
  • Applications
  • Download
  • Packing & Shipping

Product Description:

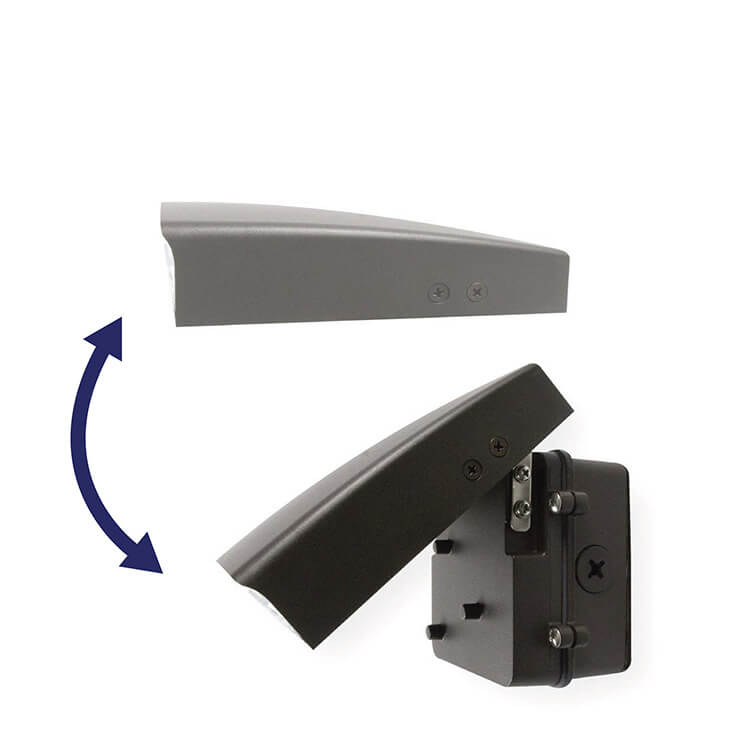

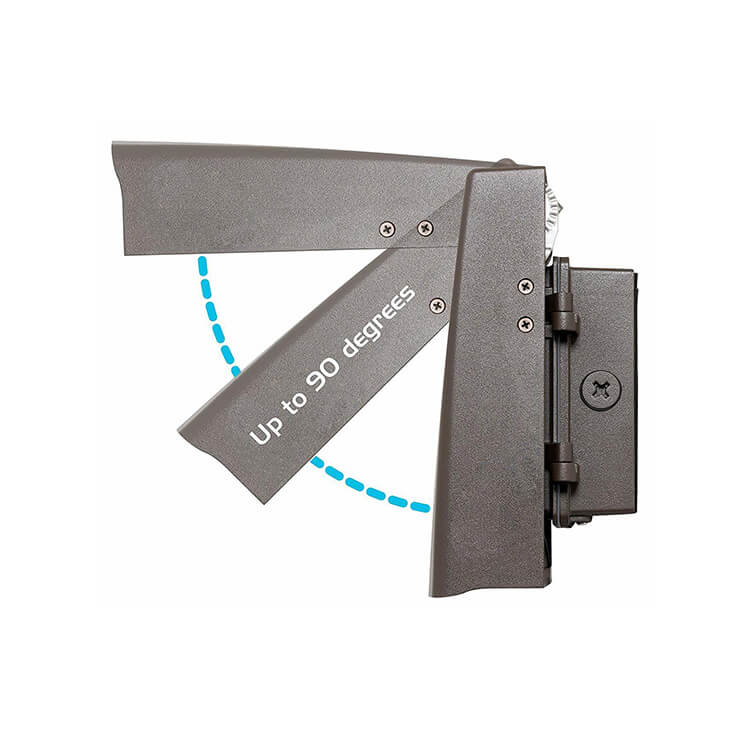

Our adjustable LED slim wall pack allows adjusting the angle of the fixture to illuminate a specific area, at over 120 lumens per watt. Available in 25W, 35W (small), 50W, 70W (Medium),and 100W, 120W (large) with CCT 4000K & 5000K. Highest efficacy rating with 14400 lumens at 120W! Replaces up to 150W HPS/HID/Halide in commercial building perimeter of retail shops, warehouses, hospitals, government buildings, and schools. Ease of installation with preconfigured junction box knockouts. IP65 rated weatherproof for all weather conditions. Dust-tight and protected from rain and water jets. This exterior wall mounted light fixture has been designed to optimize the lighting in a variety of areas, and can even be energy-optimized with use of motion sensors for unobtrusive lighting around perimeters and pathways for increased security. With a sealed die-cast profile, this modern outdoor wall lighting is graded for working in wet conditions within typical temperatures in North America.

Specification:
Produce Code Power Consumption(W) Lumens Delivered (lm) Certification
WPSL25 25W 3000lm ETL/cETL
WPSL35 35W 4200lm ETL/cETL
WPSL60 60W 7200lm ETL/cETL
WPSL80 80W 9600lm ETL/cETL
WPSL100 100W 12000lm ETL/cETL
WPSL120 120W 14400lm ETL/cETL

General features:
Efficacy: 120lm/w                            CRI: 70
Power Factor: 0.95                          Input Voltage: 100-277VAC
Certification: ETL/cETL                    Warranty: 5 years
Housing: Die-cast aluminum body(Bronze/Black). Glass diffuser
Color Temperature: 4000K/5000K
Installation:  Recessed outlet box or wall surface
Operating temperature:  -30℃ Up to 50℃ (-40℉up to122℉)
Driver Type: UL High performance LED drive
LED Type: High performance LM80 SMD3030 LED
