  • Dimmable Vapor Tight Fixture

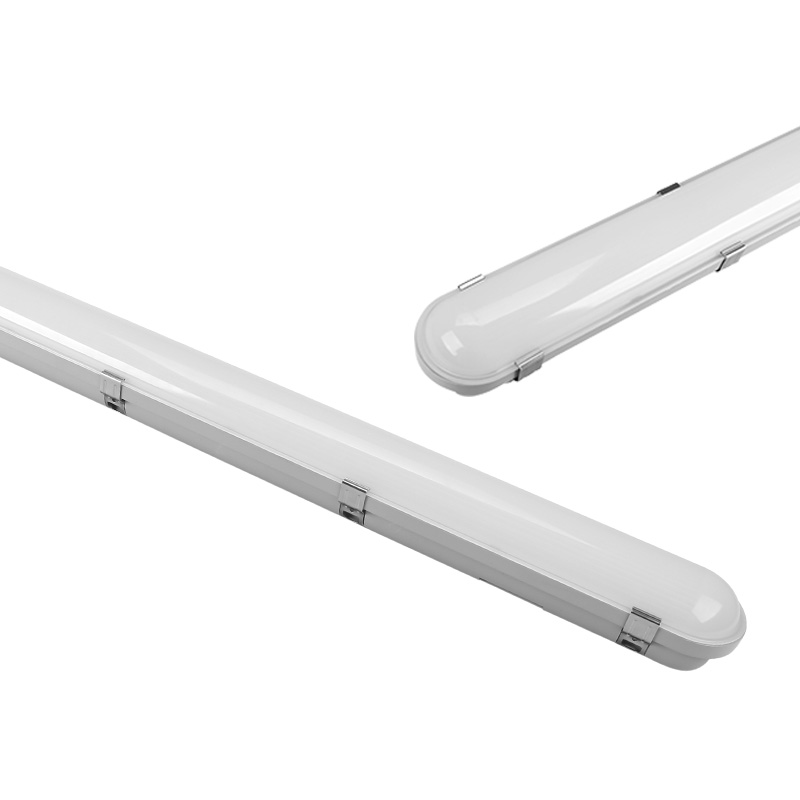

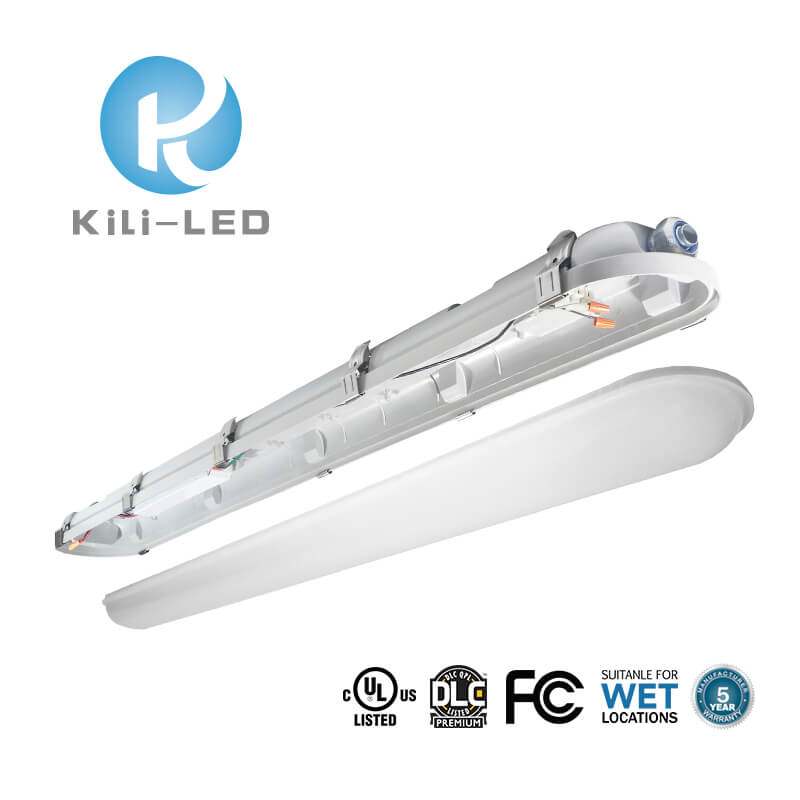

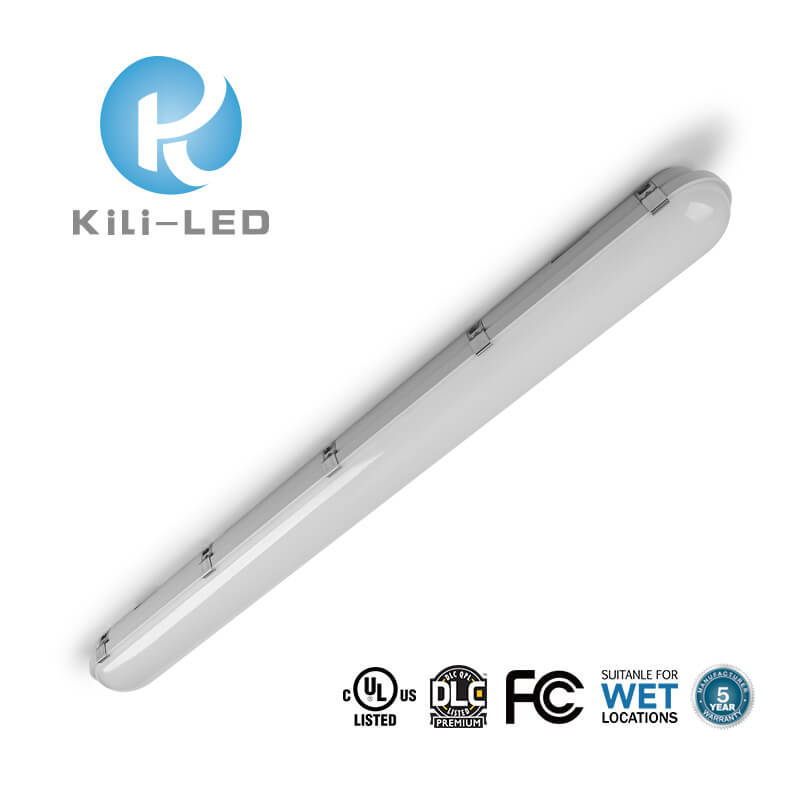

Dimmable Vapor Tight Fixture
Product description
The vapor tight fixture is a cost effective and energy efficient alternative to traditional fluorescent tubes or strip light fixtures. Featuring a full-length, gasketed polycarbonate lens and single piece non-corrosive polycarbonate body, this vapor tight led is protected with IP65 rating, sealed and gasketed against dust, dirt, and humidity, making it ideal for both indoor and outdoor harsh environments applications, including utility lighting, parking garages, freezers and cold storage facilities, food processing, car washes, stairwell lighting and low bay lighting. Additionally, ceiling or surface mounted, this led tri proof light has an initial lumen range of 105-130LPW, and features 0-10V dimming standards. As well, this model comes with a motion sensor for maximum energy savings as well as 90 mins emergency battery backup options.



  • Features
  • Specification
  • Dimension
  • Transportation
Product Features:
. UL/cUL listed for wet locations, IP65 rated

. DLC 4.3 Premium certified

. 105-130 lumens per watt

. 100-277V universal voltage

. 0-10V dimming standard, 10-100%

. Microwave Motion Sensor for Bi-Level control

. 90 mins Emergency Battery Backup

VFR Vapor Tight Fixture (Remark:The first and second and third letter "X" denote the color temperature(CCT) of

LED.(e.g. 40K=4000K), the forth X can be F or C ," F"=Forst Cover ,"C"=clearly cover; Suffix letter "P" denote dimmable, Suffix letter "S" denote NON-Dimmable.

ITEM SPECIFICATION VFRA4F-XXXXP VFRB4F-XXXXP VFRC4F-XXXXS VFRD4F--XXXXS
Power consumption(W) 60W 40W 40W 40W
Lumens Delivered (lm) 7800lm 5200lm 4200lm 4200lm
Efficacy (lm/W) 130lm/w 130lm/w 105lm/w 105lm/w
Beam angle 120° 120° 120° 120°
CRI 80 80 80 80
GENERAL PERFORMANCE Color Temperature 3000K/4000K/5000K 3000K/4000K/5000K 3000K/4000K/5000K 3000K/4000K/5000K
L70 50000h 50000h 50000h 50000h
Power Factor  >0.9 >0.9 >0.9 >0.9
ELECTRICAL Input Voltage 100-277VAC 100-277VAC 100-277VAC 100-277VAC
Housing PC PC PC PC (5VA,f1)

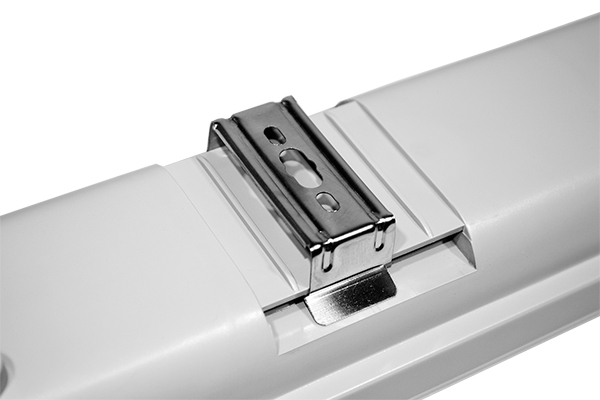

Installation Surface Mount / Chain Surface Mount / Chain Surface Mount / Chain Surface Mount / Chain
PHYSICAL Operating temperature -40℃ Up to 50℃ (-40℉up to122℉). -40℃ Up to 50℃ (-40℉up to122℉). -40℃ Up to 50℃ (-40℉up to122℉). -40℃ Up to 50℃ (-40℉up to122℉).
Environment wet locations wet locations wet locations wet locations
Warranty 5 years 5 years 5 years 5 years
CERTIFICATION Certification UL/cUL, DLC Premium UL/cUL, DLC Premium UL/cUL, DLC  UL/cUL, DLC



For LED lights export, our main modes of transportation are air and ocean, the shipping time will be 3-7 days for air or 25-30 days for ocean.
