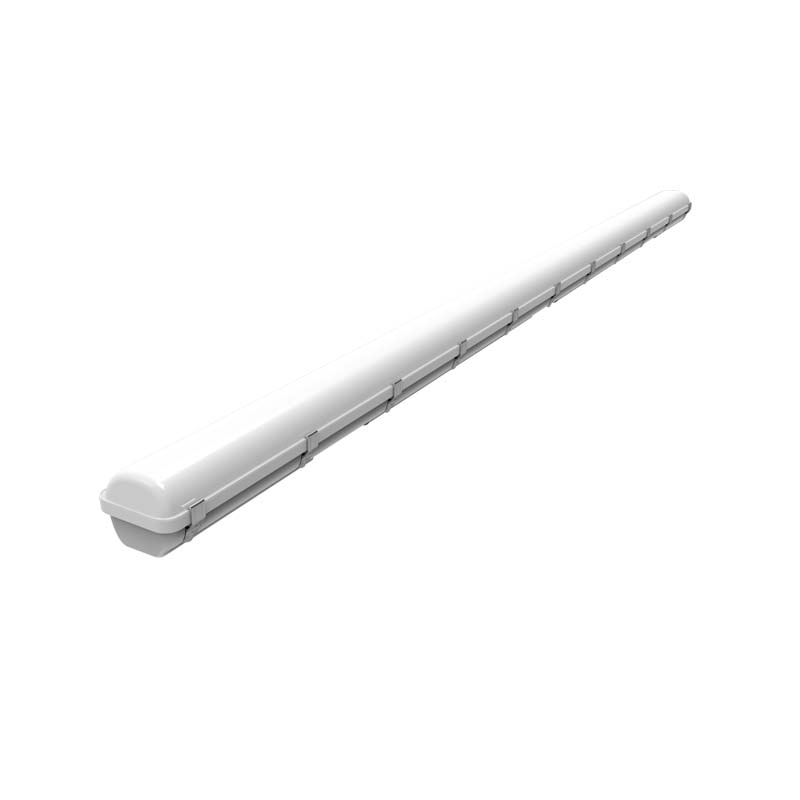

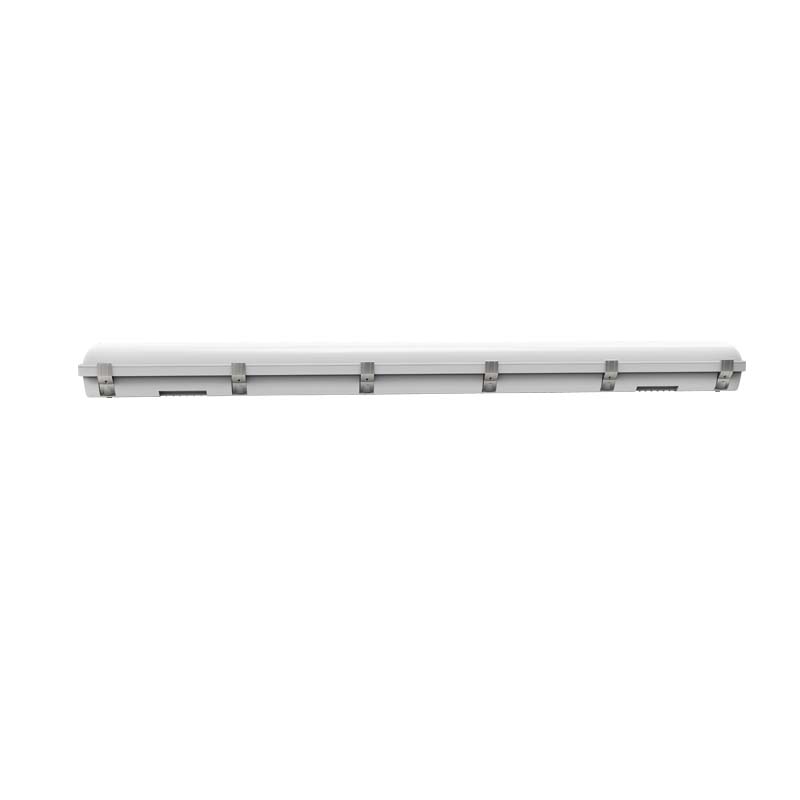

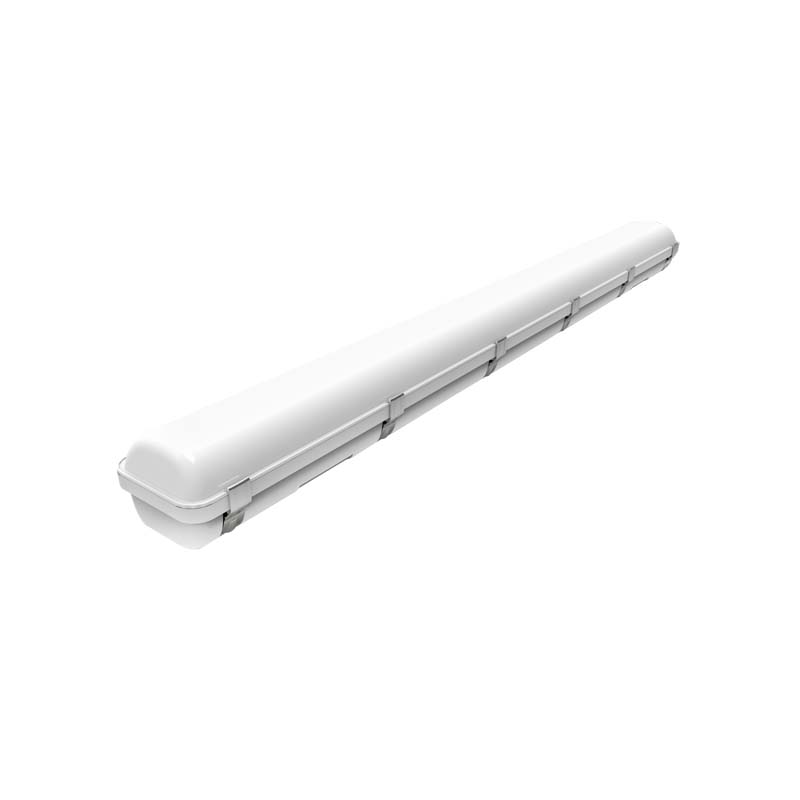

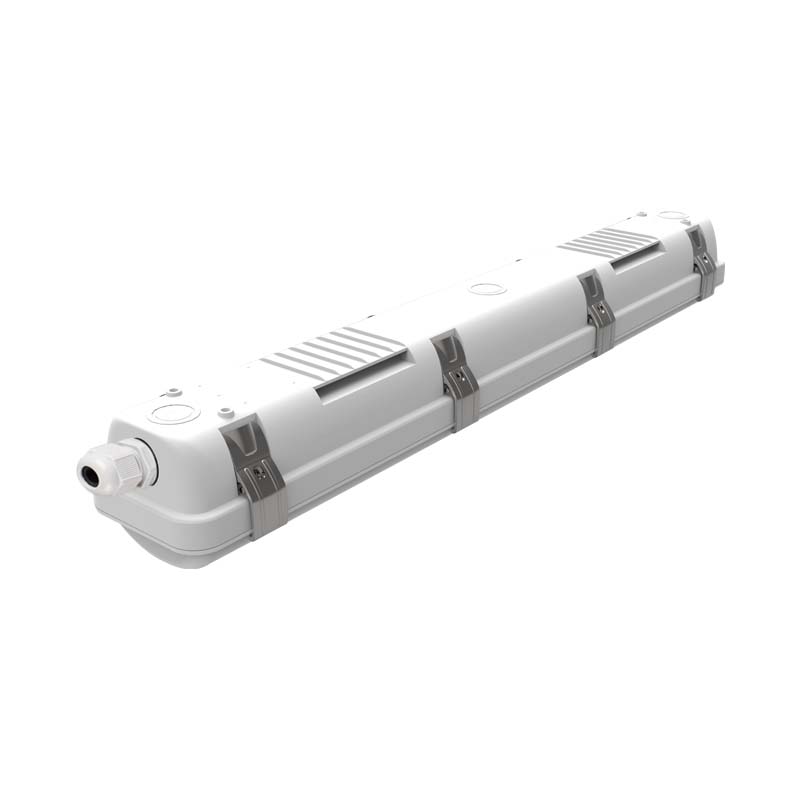

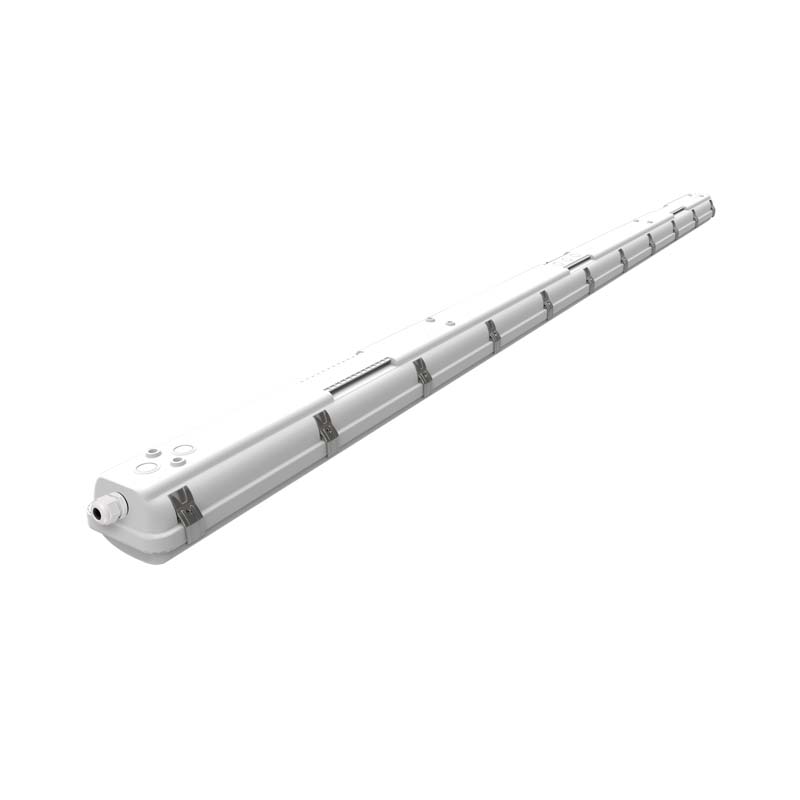

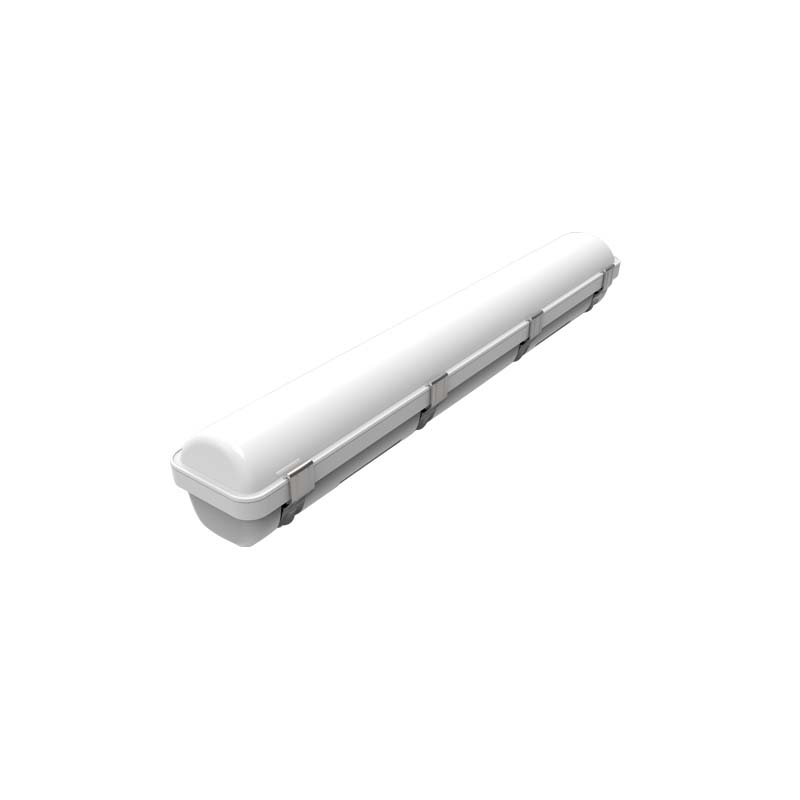

(VFOC) LED Vapor Tight Fixture

High Performance LED Vapor Tight Fixture, It Ideal for Utility Lighting, Parking Garages and Stairwells Lighting

UL/cUL Listed, ETL/cETL, DLC4.4 Premium, FCC, CE, RoHS.
IP66 Waterproof Rated, IK08.
5 Years Warranty.
130-150lm/W.
0-10V dimming.
Microwave motion sensor.
90 mins emergency battery.
  • Overview
  • Applications
  • Download
  • Packing & Shipping

Product Description:

The VFO-C series is a next generation LED Vapor Tight Fixture that provides maximum light output with durable construction. It is ideal for featuring a one piece polycarbonate housing and lens. The VFO was designed to meet or exceed IES recommended foot-candle levels at installed heights for parking garages, where meeting applicable building and safety codes is required. the LED vapor light is super easy to set up and instantly provides full brightness. We offer multiple wattage variations with clear and frosted covers distribution of up to 130-150 lm/W.

   Specification:

Produce Code VFOC020-XXXXP
VFOC040-XXXXP VFOC4F-XX-XXXXP VFOCHV-XX-XXXXP VFOC8F-XX-XXXXP
Power Consumption(W) 20W 40W 32/40/50W 32/44/50W 80/100/120W
Lumens Delivered Frosted(lm) 2600lm 5200lm 6500lm 6500lm 15600lm
Input Voltage 100-277VAC 100-277VAC 100-277VAC 120-347VAC 100-277VAC

General Features:
Beam angle: 120°                                                                                             CRI: 80
Power Factor: >0.9                                                                                           Housing: PC

Installation: Surface Mount / Chain                                                                 Efficacy (lm/W): 130lm/W

Operating temperature: -40℃ Up to 40℃ (-40℉up to122℉)                         Input Voltage: 100-277/120-347VAC
Driver Type: UL Driver                                                                                      Luminous Efficacy: up to 150lm/w(Clear lens)
LED Type: LM80 SMD2835                                                                               Material: Polycarbonate Body & Difuser
Rated Life: 50,000 hours                                                                                   Certificates: UL/cUL Listed, ETL/cETL, DLC4.4 Premium, FCC, CE, RoHS.


Applications:
Parking Garage / Cold Storage / Supermarket / Warehouses / Industrial units / Farm buildings / Workshops / Stairwells / Factories / Car parks / Changing rooms / Wet Locations

Packing:

Packed in cartons, the same type of products are packed together or different products packaged together.

Transportation:

For LED lights export, our main modes of transportation are air and ocean, the transit time will be 4-10 days for air or 25-30 days for ocean.

International express includes 4 types: FedEx, DHL, TNT, UPS.

Domestic express includes SF, Sto, YTO, ZTO, Baishi, and Yunda Express, Transit time 3-5 days.
