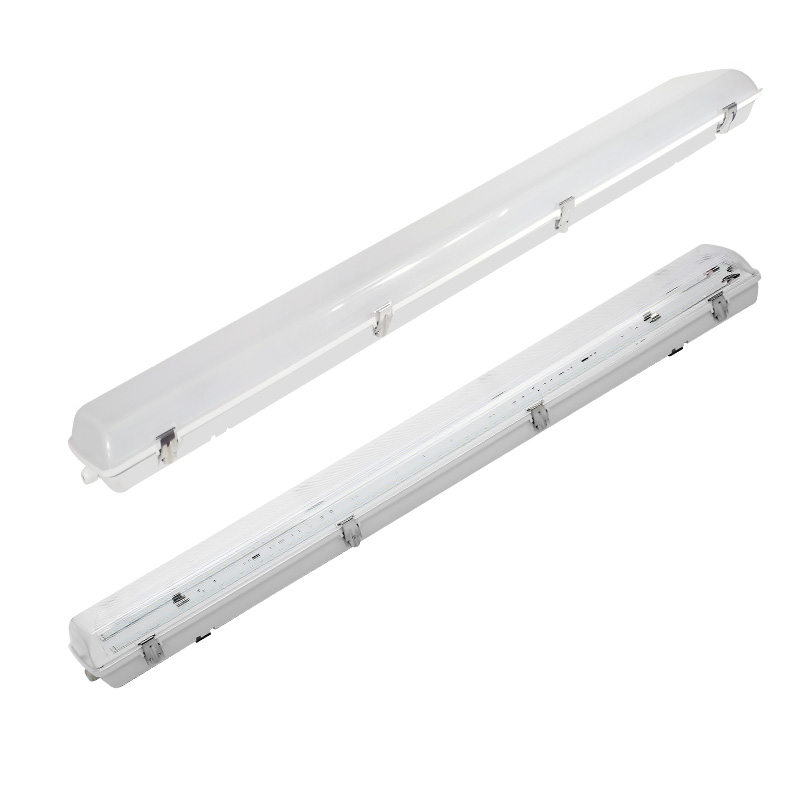

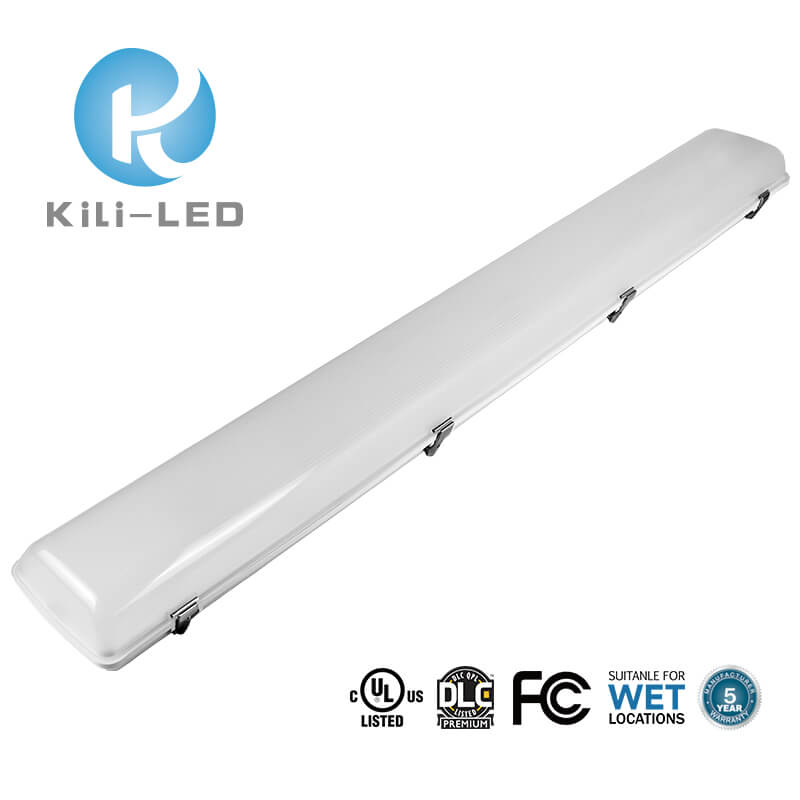

Vapor Tight LED Fixture
Product description
The vapor tight fixture is a cost effective and energy efficient alternative to traditional fluorescent tubes or strip light fixtures. Featuring a full-length, gasketed polycarbonate lens and single piece non-corrosive polycarbonate body, this tri proof fixture is protected with IP65 rating, sealed and gasketed against dust, dirt, and humidity, making it ideal for both indoor and outdoor harsh environments applications, including utility lighting, parking garages, freezers and cold storage facilities, food processing, car washes, stairwell lighting and low bay lighting. Additionally, ceiling or surface mounted, this vapor tight led fixture has an initial lumen range of 130-150LPW, and features 0-10V dimming standards. As well, this model comes with a motion sensor for maximum energy savings as well as 90 mins emergency battery backup options.



  • Features
  • Specification
  • Dimension
  • Transportation

Product Features:

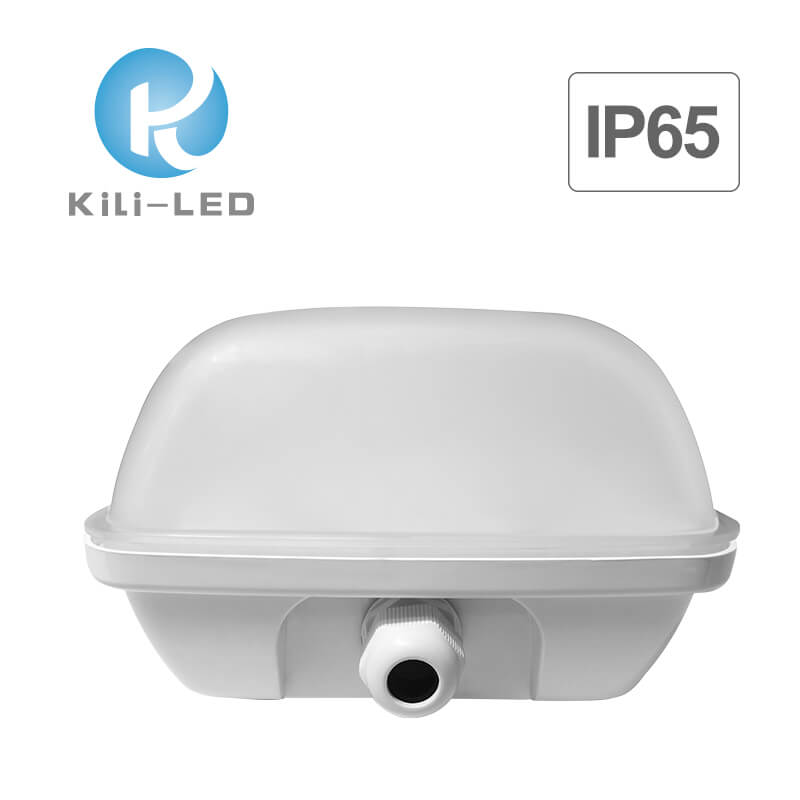

. UL/cUL listed for wet locations, IP65 rated

. DLC 4.3 Premium certified

. 130-150 lumens per watt

. 100-277V or 277-347V universal voltage

. 0-10V dimming standard, 10-100%

. Microwave Motion Sensor for Bi-Level control

. 90 mins Emergency Battery Backup

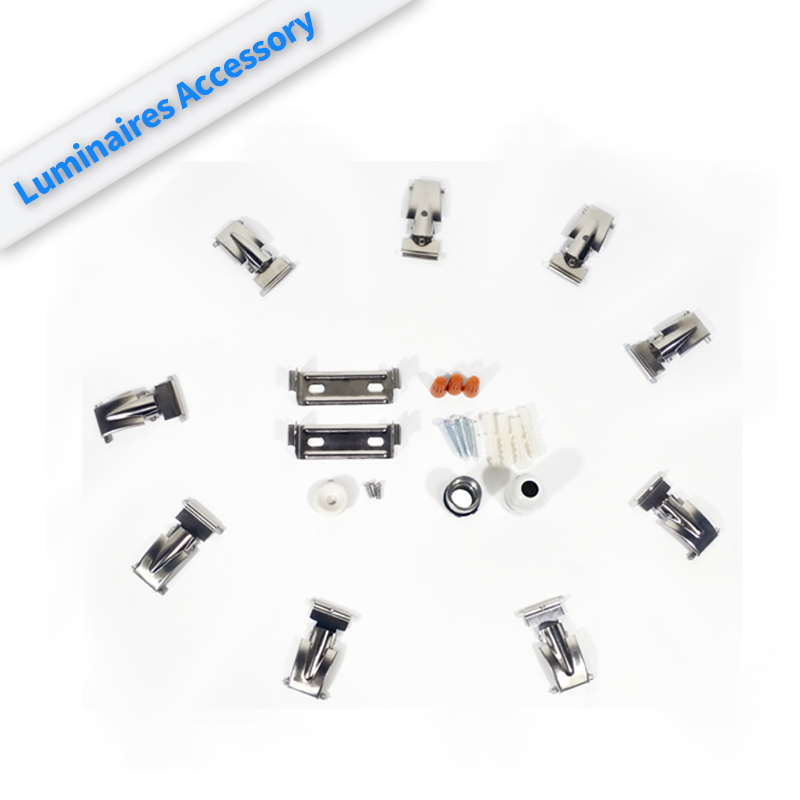

. Linkable with accessories


VFO Vapor Tight Fixture (Remark:The first and second and third letter "X" denote the color temperature(CCT) of

LED.(e.g. 40K=4000K), the forth X can be F or C ," F"=Forst Cover ,"C"=clearly cover; Suffix letter "P" denote dimmable, Suffix letter "S" denote NON-Dimmable.)

ITEM SPECIFICATION VFO020-XXXXS  (2ft) VFO040-XXXXX (4ft) VFO054-XXXXX (4ft) VFO080-XXXXS (8ft) VFO100-XXXXS(8ft) VFOLV054-XXXS(4ft) VFOHV040-XXXXS(4ft) VFOHV054-XXXXS(4ft) VFO040-XXXXX-SR (4ft) VFO054-XXXXX -SR(4ft) VFO054-XXXXX-EM(4ft)
Power consumption(W) 20W 38W 50W 80W 100W 50W 38W 50W 38W   50W 50W /16W on Emergency
Lumens Delivered (lm) 3000lm(Clear Cover )  5700lm(Clear Cover ) 4900lm(Frost cover) 7500lm(Clear Cover ) 6500lm(Frost cover) 12000lm(Clear cover)  15000lm(Clear cover) 7500lm(Clear Cover ) 6500lm(Frost cover) 5700lm(Clear Cover ) 4900lm(Frost cover) 7500lm(Clear Cover ) 6500lm(Frost cover) 5700lm(Clear Cover ) 4900lm(Frost cover) 7500lm(Clear Cover ) 6500lm(Frost cover) 7500lm(Clear Cover ) 6500lm(Frost cover)
Efficacy (lm/W) 150lm/W(Clear Cover )  150lm/W(Clear Cover ) 130lm(Frost cover) 150lm/W(Clear Cover ) 130lm(Frost cover) 150lm/w(Clear cover) 150lm/w(Clear cover) 150lm/W(Clear Cover ) 130lm(Frost cover) 150lm/W(Clear Cover ) 130lm(Frost cover) 150lm/W(Clear Cover ) 130lm(Frost cover) 150lm/W(Clear Cover ) 130lm(Frost cover) 150lm/W(Clear Cover ) 130lm(Frost cover) 150lm/W(Clear Cover ) 130lm(Frost cover)
Beam angle 120 degree available 120 degree available  120 degree available  120 degree available  120 degree available  120 degree available  120 degree available  120 degree available  120 degree available  120 degree available  120 degree available
CRI 80 80 80 80 80 80 80 80 80 80 80
GENERAL PERFORMANCE Color Temperature 4000K/5000K 4000K/5000K 4000K/5000K 4000K/5000K 4000K/5000K 4000K/5000K 4000K/5000K 4000K/5000K 4000K/5000K 4000K/5000K 4000K/5000K
L70 >50,000hrs >50,000hrs >50,000hrs >50,000hrs >50,000hrs >50,000hrs >50,000hrs >50,000hrs >50,000hrs >50,000hrs >50,000hrs
Power Factor  >0.9 >0.9 >0.9 >0.9 >0.9 >0.9 >0.9 >0.9 >0.9 >0.9 >0.9
ELECTRICAL Input Voltage 100-277VAC 50/60Hz 100-277VAC 50/60Hz 100-277VAC50/60Hz 100-277VAC50/60Hz 100-277VAC 50/60Hz DC36V 1.4A  277-347VAC  50/60Hz 277-347VAC  50/60Hz 2100-277VAC  50/60Hz 100-277VAC  50/60Hz 100-277VAC  50/60Hz
Housing PC(Body) Diffuse(PC) PC(Body) Diffuse(PC) PC(Body) Diffuse(PC) PC(Body) Diffuse(PC) PC(Body) Diffuse(PC) PC(Body) Diffuse(PC) PC(Body) Diffuse(PC) PC(Body) Diffuse(PC) PC(Body) Diffuse(PC) PC(Body) Diffuse(PC) PC(Body) Diffuse(PC)
Installation Surface Mount / Chain Surface Mount / Chain Surface Mount / Chain Surface Mount / Chain Surface Mount / Chain Surface Mount / Chain Surface Mount / Chain Surface Mount / Chain Surface Mount / Chain Surface Mount / Chain Surface Mount / Chain
PHYSICAL Operating temperature -40℃ Up to 50℃ (-40℉up to122℉) -40℃ Up to 50℃ (-40℉up to122℉) -40℃ Up to 50℃ (-40℉up to122℉) -40℃ Up to 50℃ (-40℉up to122℉) -40℃ Up to 50℃ (-40℉up to122℉) -40℃ Up to 50℃ (-40℉up to122℉) -40℃ Up to 50℃ (-40℉up to122℉) -40℃ Up to 50℃ (-40℉up to122℉) -40℃ Up to 50℃ (-40℉up to122℉) -40℃ Up to 50℃ (-40℉up to122℉) -40℃ Up to 50℃ (-40℉up to122℉)
Environment Indoor/Outdoor, Wet locations Indoor/Outdoor, Wet locations Indoor/Outdoor, Wet locations Indoor/Outdoor, Wet locations Indoor/Outdoor, Wet locations Indoor/Outdoor, Wet locations Indoor/Outdoor, Wet locations Indoor/Outdoor, Wet locations Indoor/Outdoor, Wet locations Indoor/Outdoor, Wet locations Indoor/Outdoor, Wet locations
Warranty 5 years 5 years 5 years 5 years 5 years 5 years 5 years 5 years 5 years 5 years Luminaries 5 years/ Battery 2 years
CERTIFICATION Certification ETL/cETL DLC 4.3 premium  UL/cUL, DLC 4.3 Premium UL/cUL, DLC 4.3 Premium ETL/cETL DLC 4.3 premium ETL/cETL DLC 4.3 premium  ETL /Cetl  UL 2108    UL/cUL UL/cUL UL/cUL UL/cUL UL/cUL



For LED lights export, our main modes of transportation are air and ocean, the shipping time will be 3-7 days for air or 25-30 days for ocean.
