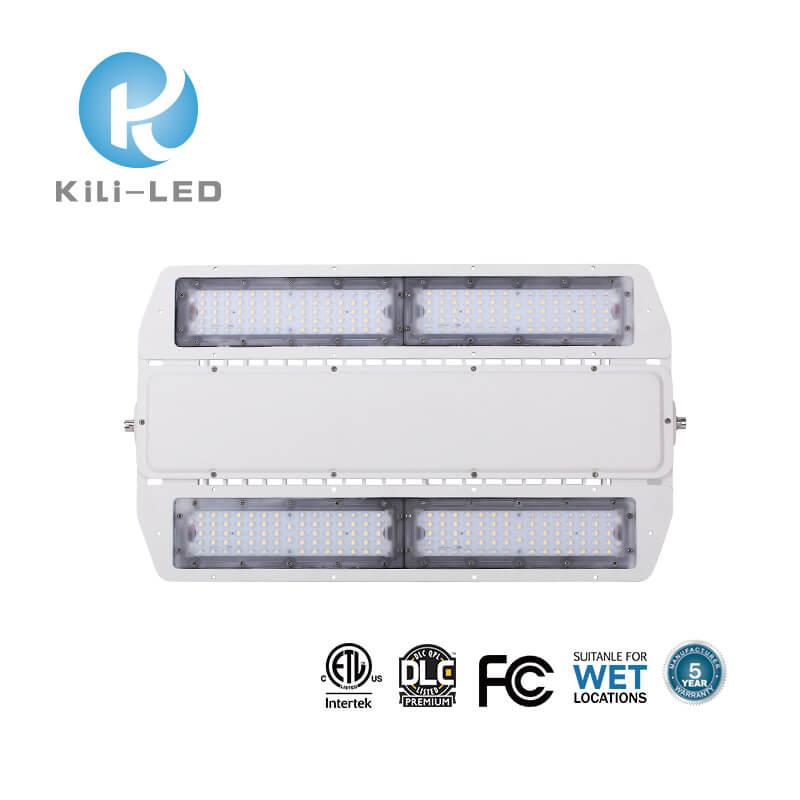

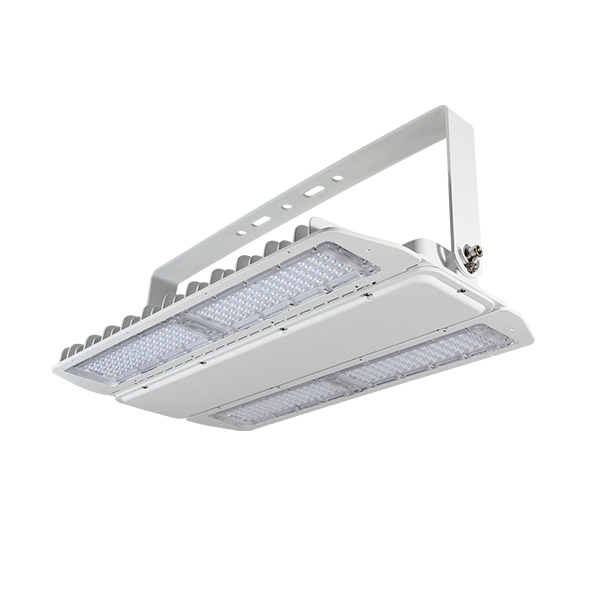

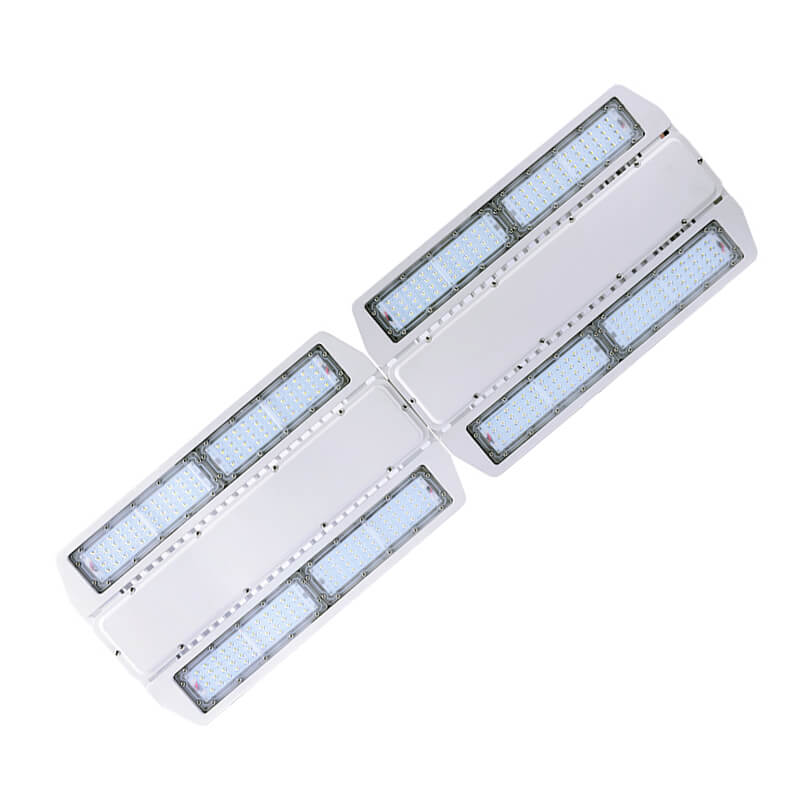

IP66 Linear High Bay
Product description

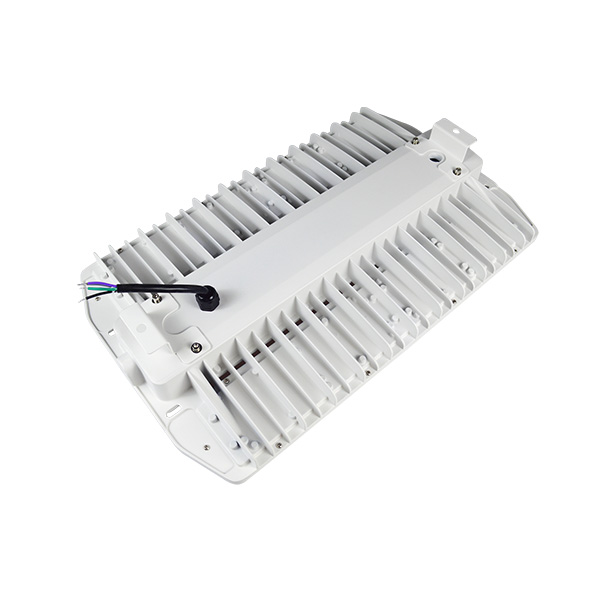

The LED linear high bay light adopts modular design, integrated innovative aluminum heat sink for superior thermal performance and increased longevity. This energy-efficient linear high bay led lighting offers one-to-one replacement of existing HID or fluorescent high bays. Superior performance, ultra high-efficacy and premium quality provides an economic solution for high ceiling applications, especially warehouse spaces. Delivering high output, quality light and low energy consumption can improve warehouse safety and productivity, lower maintenance cost, and reducing operating costs. These LED high bay fixtures are designed for optimal use in large areas such as manufacturing facilities, warehouses, cold storages, big box and retail stores, convention centers, gymnasiums, and more.



  • Features
  • Specification
  • Dimension
  • Transportation

Product Features:
. ETL/cETL listed for wet locations, IP66 rated

. DLC 4.3 Premium certified

. 130 lumens per watt

. 100-277V or 347-480V universal voltage

. 0-10V dimming standard, 10-100%

. Remote adjust control Bi-Level sensor



LSP IP66 Heavy Duty Highbay  (Remark:Where first,second and third X can be 40K or 50K denote the color temperature(CCT) of LED(e.g. 40K=4000K). The forth and fifth X can be ST, TH or SU denote the type of mounting device; where ST=Standard, TH=Threaded Rod, SU=Surface Mounted. The sixth X can be X or S denote the denote the sensor function of the luminaire; where X=models without motion sensor, S=models with motion sensor)

ITEM SPECIFICATION KLHB100LSP-SXXKALCXXX KLHB150LSP-SXXKALCXXX KLHB210LSP-SXXKALCXXX KLHB240LSP-SXXKALCXXX KLHVHB100LSP-SXXKALCXXX KLHVHB150LSP-SXXKALCXXX KLHVHB210LSP-SXXKALCXXX KLHVHB240LSP-SXXKALCXXX
Wattage(W) 100W 150W 210W 240W 100W 150W 210W 240W
Lumens Delivered (lm) 13800lm 20600lm 28000lm 30000lm 13400lm 19600lm 25500lm 27800lm
Efficacy (lm/W) 136lm/w 137lm/w 134lm/w 130lm/w 133lm/w 130lm/w 124lm/w 124lm/w
CRI >80 >80 >80 >80 >80 >80 >80 >80
Color Temperature 4000K/5000K 4000K/5000K 4000K/5000K 4000K/5000K 4000K/5000K 4000K/5000K 4000K/5000K 4000K/5000K
GENERAL PERFORMANCE Beam Angle 50°, 80°,30*100°, 60*150° PC lens,120° glass cover 50°, 80°,30*100°, 60*150° PC lens,120° glass cover 50°, 80°,30*100°, 60*150° PC lens,120° glass cover 50°, 80°,30*100°, 60*150° PC lens,120° glass cover 50°, 80°,30*100°, 60*150° PC lens,120° glass cover 50°, 80°,30*100°, 60*150° PC lens,120° glass cover 50°, 80°,30*100°, 60*150° PC lens,120° glass cover 50°, 80°,30*100°, 60*150° PC lens,120° glass cover
L70 More than 50000hours More than 50000hours More than 50000hours More than 50000hours More than 50000hours More than 50000hours More than 50000hours More than 50000hours
Power Factor  0.98at 100VAC 0.90 at 277VAC 0.98at 100VAC 0.90 at 277VAC 0.98at 100VAC 0.90 at 277VAC 0.98at 100VAC 0.90 at 277VAC 0.98at 100VAC 0.90 at 277VAC 0.98at 100VAC 0.90 at 277VAC 0.98at 100VAC 0.90 at 277VAC 0.98at 100VAC 0.90 at 277VAC
ELECTRICAL Input Voltage 100-277VAC 100-277VAC 100-277VAC 100-277VAC 277-480VAC 277-480VAC 277-480VAC 277-480VAC
Housing Die cast aluminum with powder coat pain, White color ,PC Lens  and Clear Glass cover  Die cast aluminum with powder coat pain, White color ,PC Lens  and Clear Glass cover  Die cast aluminum with powder coat pain, White color ,PC Lens  and Clear Glass cover  Die cast aluminum with powder coat pain, White color ,PC Lens  and Clear Glass cover  Die cast aluminum with powder coat pain, White color ,PC Lens  and Clear Glass cover  Die cast aluminum with powder coat pain, White color ,PC Lens  and Clear Glass cover  Die cast aluminum with powder coat pain, White color ,PC Lens  and Clear Glass cover  Die cast aluminum with powder coat pain, White color ,PC Lens  and Clear Glass cover

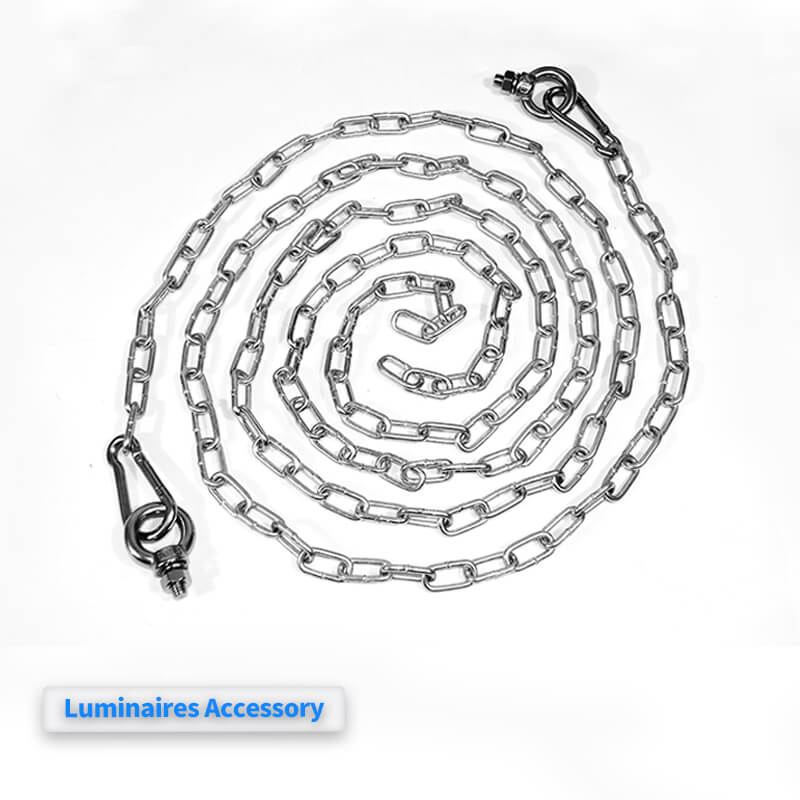

Installation Chain or cable mounting (Standard)  Threaded rod kit( optional),  Surface mounted kit (optional ) Chain or cable mounting (Standard)  Threaded rod kit( optional),  Surface mounted kit (optional ) Chain or cable mounting (Standard)  Threaded rod kit( optional),  Surface mounted kit (optional ) Chain or cable mounting (Standard)  Threaded rod kit( optional),  Surface mounted kit (optional ) Chain or cable mounting (Standard)  Threaded rod kit( optional),  Surface mounted kit (optional ) Chain or cable mounting (Standard)  Threaded rod kit( optional),  Surface mounted kit (optional ) Chain or cable mounting (Standard)  Threaded rod kit( optional),  Surface mounted kit (optional ) Chain or cable mounting (Standard)  Threaded rod kit( optional),  Surface mounted kit (optional )
PHYSICAL Operating temperature -30 Up to 50 (-22up to122). -30 Up to 50 (-22up to122). -30 Up to 50 (-22up to122). -30 Up to 50 (-22up to122). -30 Up to 50 (-22up to122). -30 Up to 50 (-22up to122). -30 Up to 50 (-22up to122). -30 Up to 50 (-22up to122).
Environment damp/wet locations damp/wet locations damp/wet locations damp/wet locations damp/wet locations damp/wet locations damp/wet locations damp/wet locations
Warranty 5 years 5 years 5 years 5 years 5 years 5 years 5 years 5 years
CERTIFICATION Certification ETL/cETL,  DLC Premium  ETL/cETL,  DLC Premium  ETL/cETL,  DLC Premium  ETL/cETL,  DLC Premium  ETL/cETL DLC ETL/cETL DLC ETL/cETL DLC ETL/cETL DLC






For LED lights export, our main modes of transportation are air and ocean, the shipping time will be 3-7 days for air or 25-30 days for ocean.
