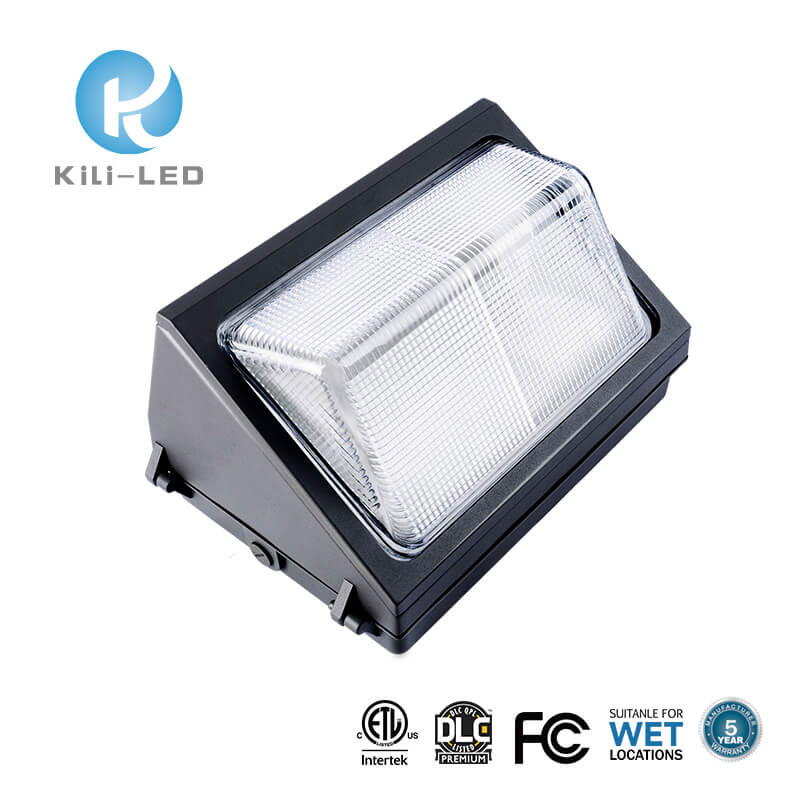

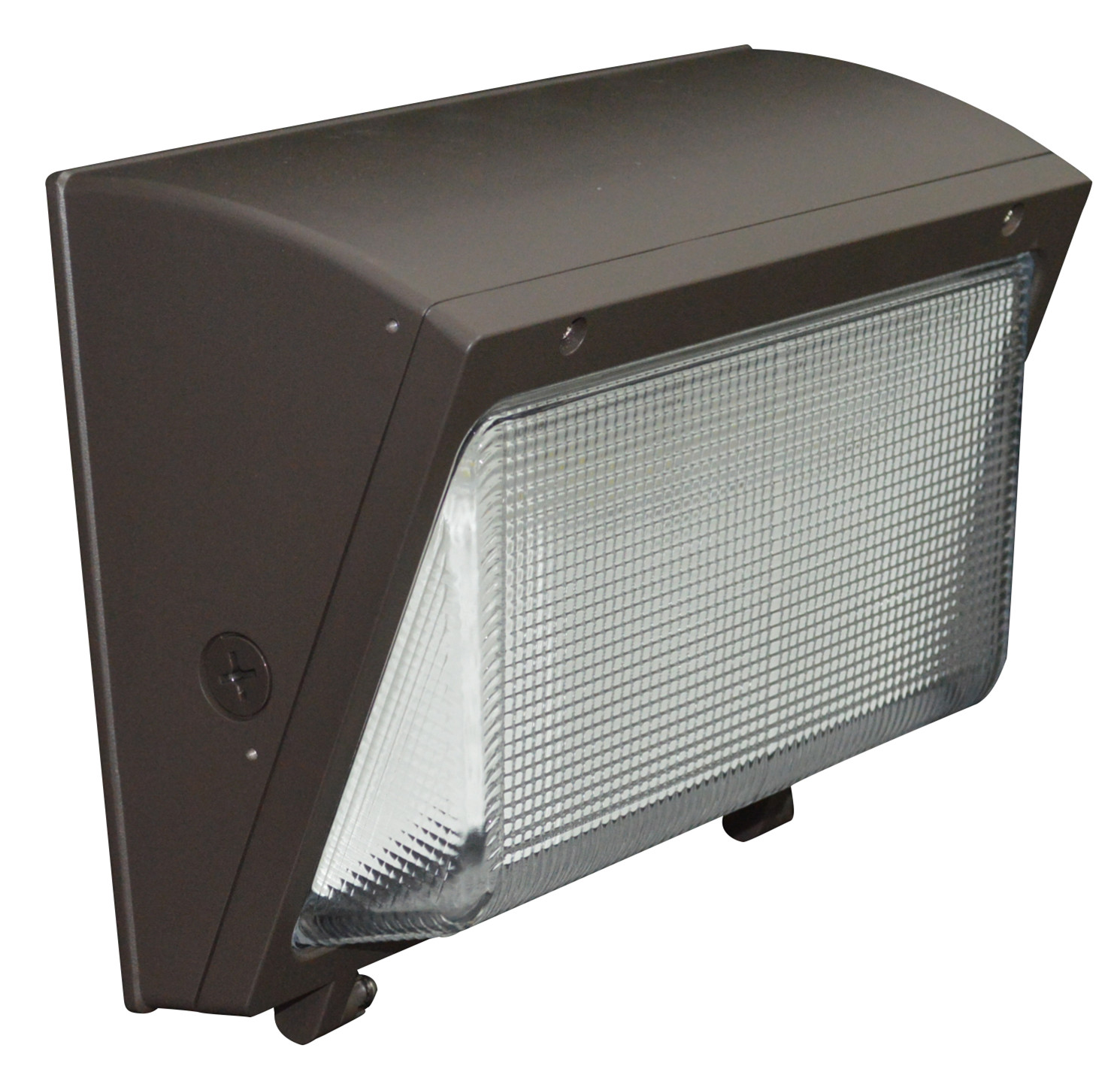

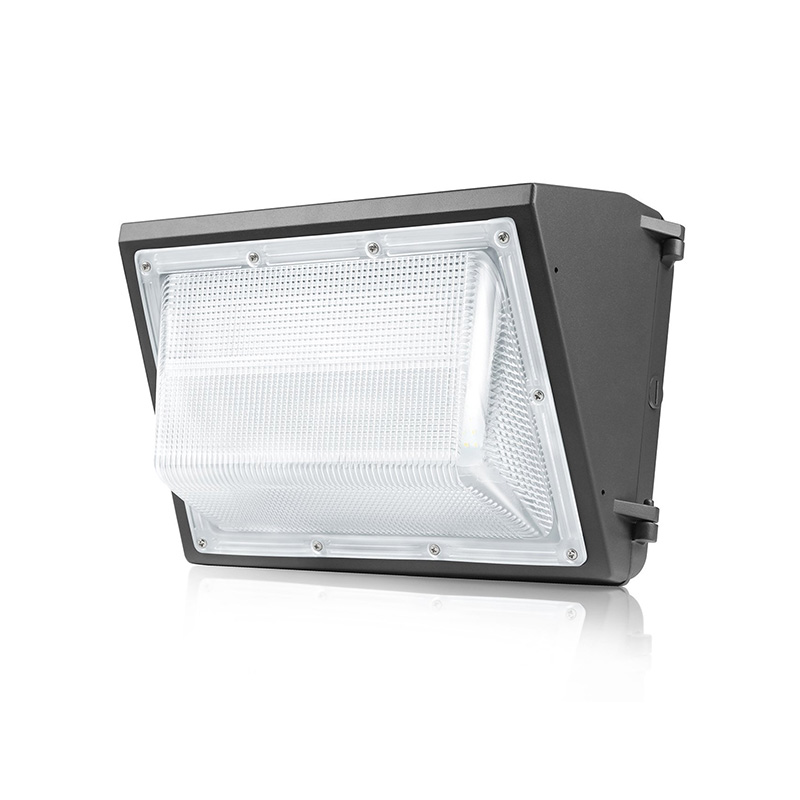

LED Wall Pack (WPPR)
Product description
The LED wall pack consumes 35/50/80/120/150 watts and replaces 175 watts to 400 watts metal halide wall packs. Construction consists of die-cast aluminum housing and a durable frosted polycarbonate lens to protect LEDs, the LED wall pack with photocell operates within a wide range input voltage 100-277VAC, comes in 5000K cool white color temperature. Also this LED outdoor wall packs is 0-10V dimmable and can be installed with photocell sensor. Easily mount the light on a recessed junction box, or wall surface mount and wire through conduit. Wall pack lights are more energy efficient and can lower maintenance costs in the long run. Install LED wall pack fixtures for building lighting and perimeter lighting for outdoor commercial applications, such as parking lot lighting, entryway lighting, security lighting, and more.



  • Features
  • Specification
  • Dimension
  • Transportation
Product Features:

. ETL/cETL listed for wet and outdoor locations

.125 lumens per watt

. 100-277V input voltage

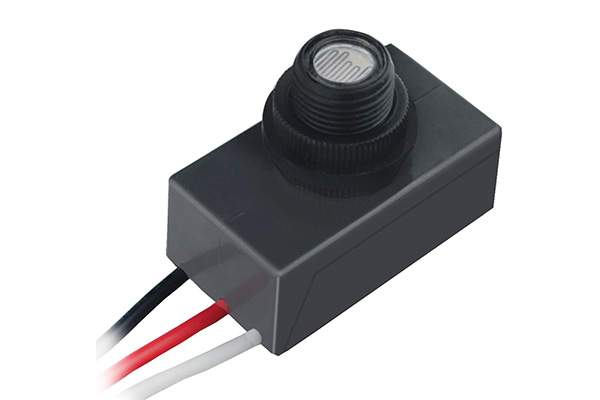

. Photocell included for dusk-to-dawn operation

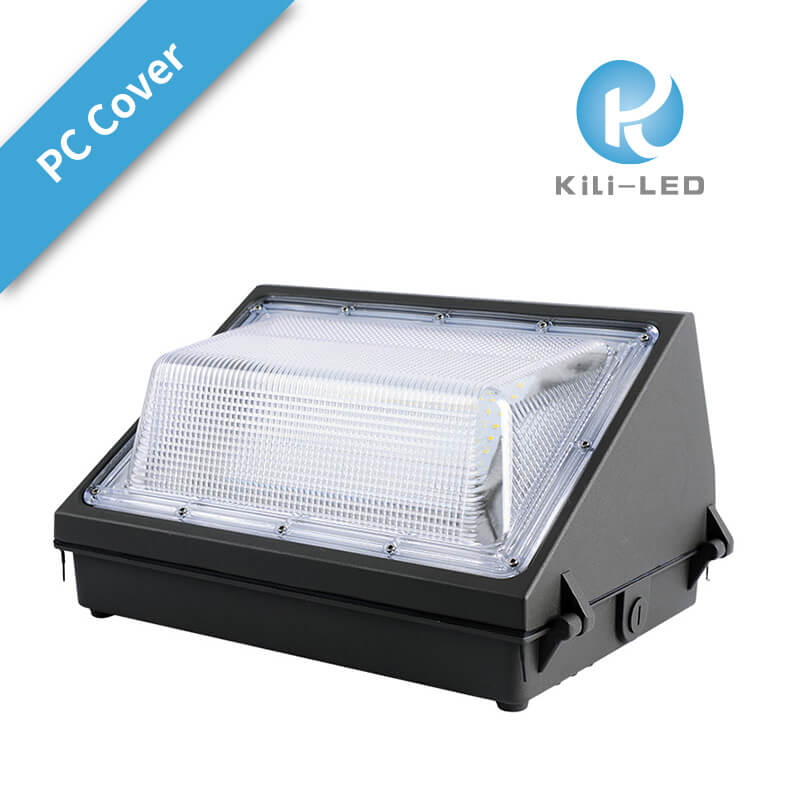

. Watertight polycarbonate lens that guard against damage

LED Wall Pack (WPPR)

Specification Wattage(W) Lumens Delivered (lm)
KLWPPR035-XXXYZ 35W 4200lm
KLWPPR050-XXXYZ 50W 6200lm
KLWPPR080-XXXYZ 80W 9600lm
KLWPPR0120-XXXYZ 120W 14400lm
KLWPPR0150-XXXYZ 150W 18000lm

Efficacy: 120lm/W

CRI: >70

Color Temperature: 3000K/4000K/5000K

Life time: >50,000h

Power Factor: 0.98at 100VAC 0.90 at 277VAC

Input Voltage: 100-277VAC

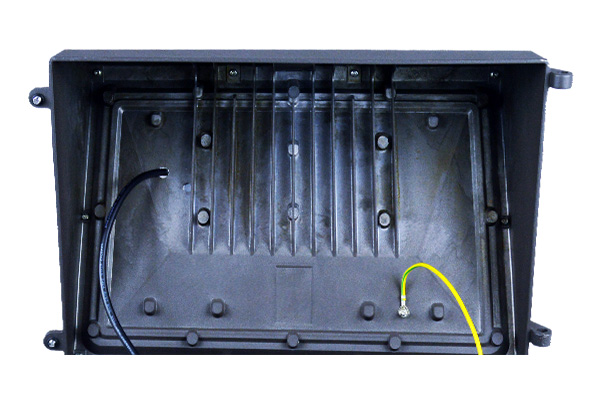

Housing: Die-cast aluminum body(Bronze/Black). PC diffuse

Installation: Recessed outlet box or wall surface

Operating temperature: -30℃ Up to 50℃ (-22℉up to122℉).

Environment: damp/wet locations

Warranty: 5 years

Certification: ETL/cETL

WPGR PC.png

For LED lights export, our main modes of transportation are air and ocean, the shipping time will be 3-7 days for air or 25-30 days for ocean.
