(WPGR) Wall Pack
thumb
thumb
thumb
thumb
thumb
thumb
thumb

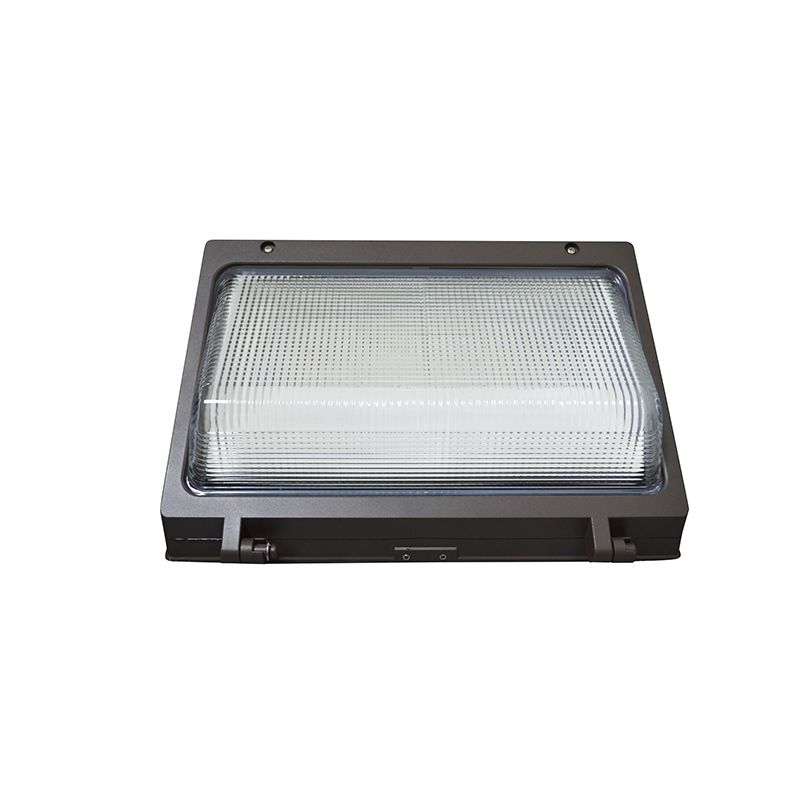

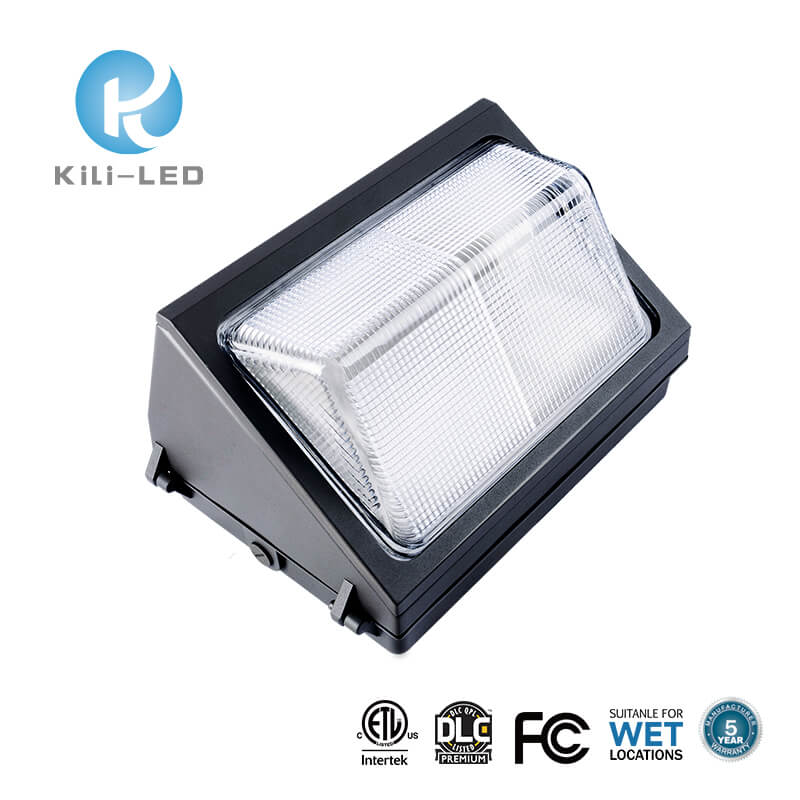

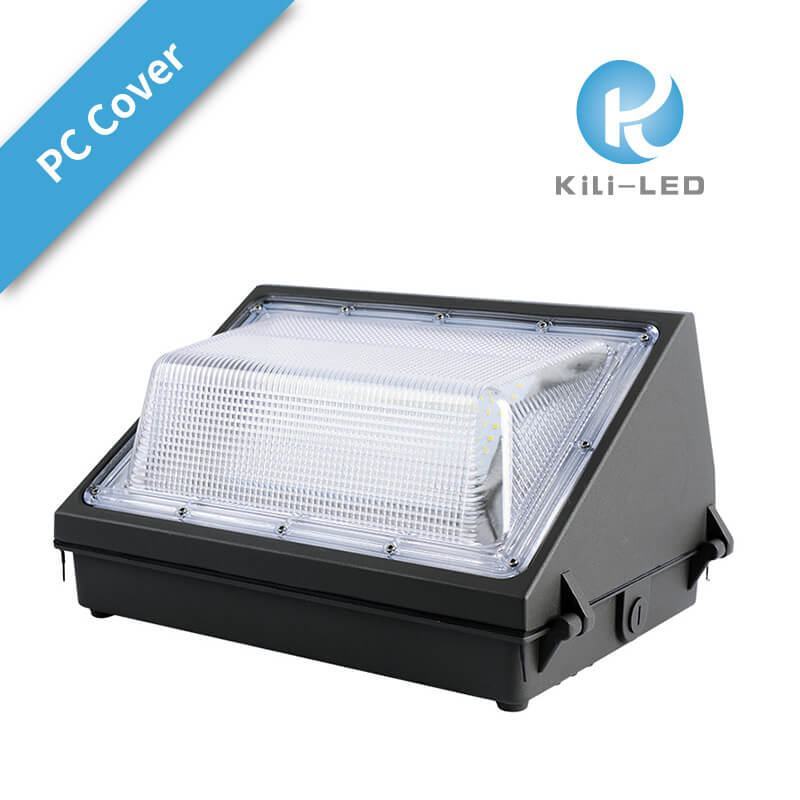

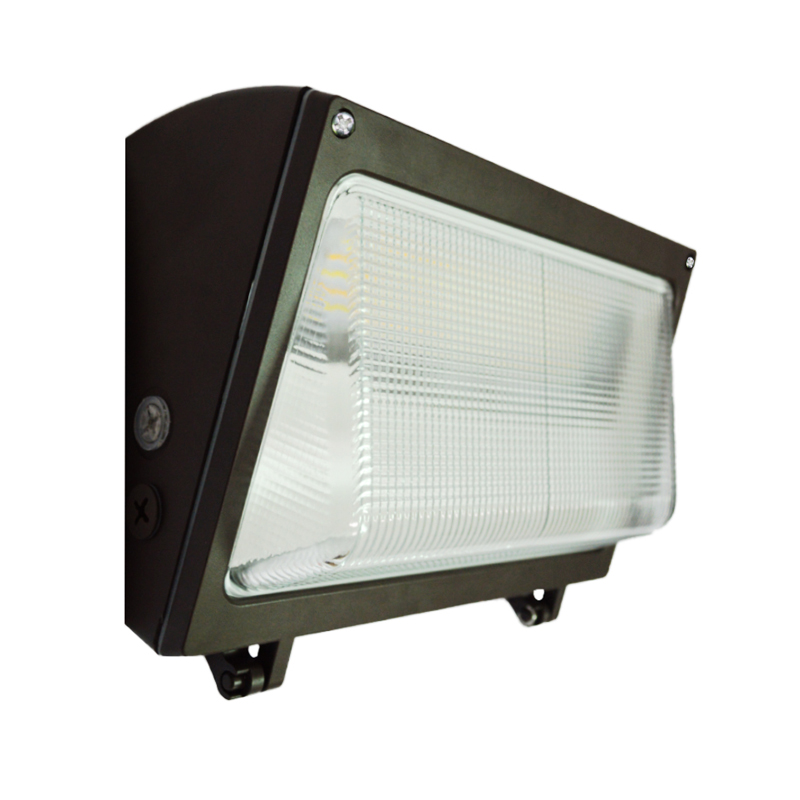

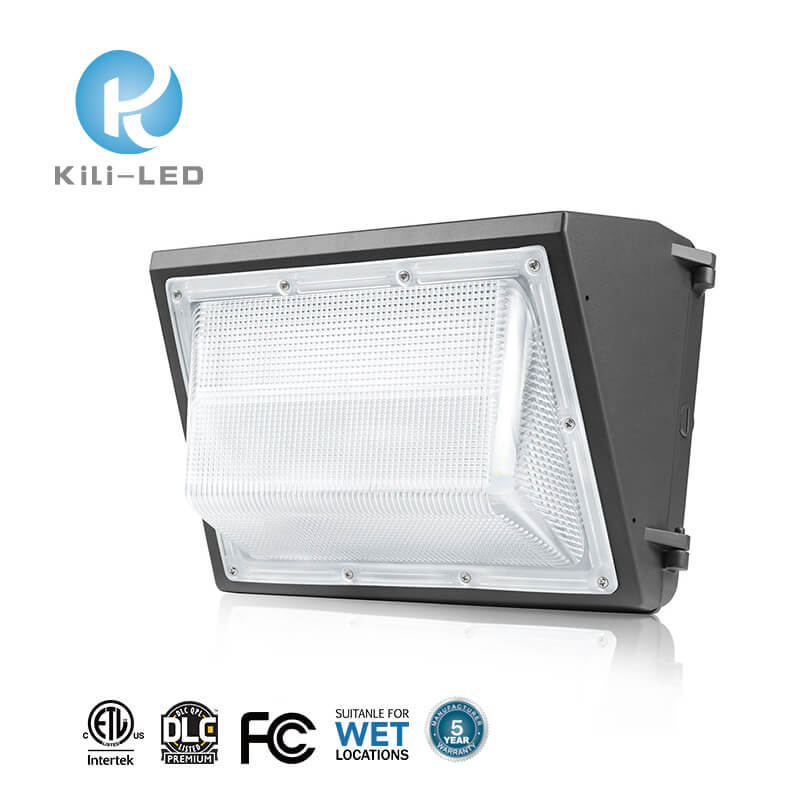

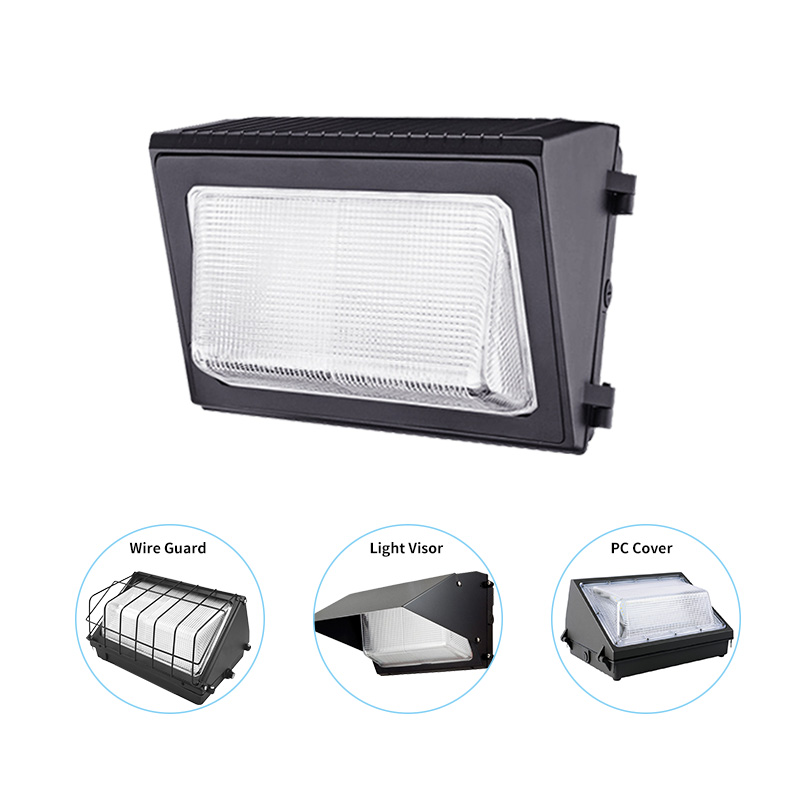

North American Standard Outdoor Glass or PC Cover LED Wall Pack, 10-150W, Dimming and Solar Energy Optional

ETL/cETL listed, DLC4.4 Premium, FCC.
Solar energy optional.
120lm/W.
0-10V dimming.
100-277V or 347-480V.

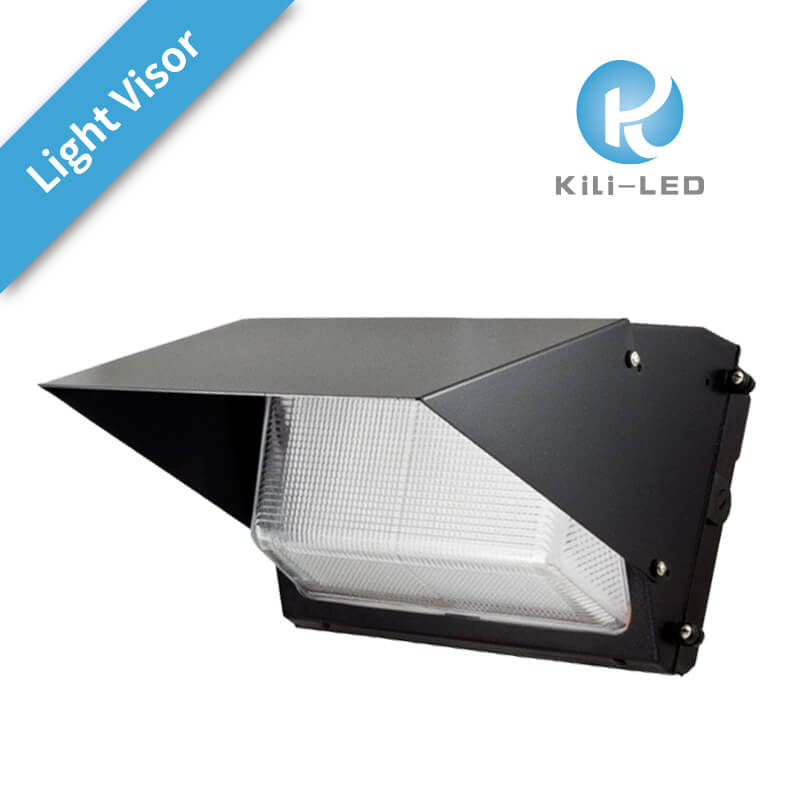

Photocell sensor, wire guard, light visor, motion sensor optional.



  • Overview
  • Applications
  • Download
  • Packing & Shipping


Product Description:

The classic version replicates the classic design of a traditional wall pack luminaire. Simply convert your old technology to LED without changing the look you like! Construction consists of die-cast aluminum housing and a shatter-proof glass refractor, non-yellowing lens. This LED wall pack can be 0-10V  dimmable and installed with photocell sensor. Easily mount the light on a recessed junction box, or wall surface mount and wire through conduit. LED wall packs are more energy-efficient and can lower maintenance costs in the long run.

Specification:

Produce Code Power Consumption
(W)
Lumens Delivered
(lm)
Input Voltage Power Factor Certification
KLWPGR010- XXKSL 10W 1400lm N/A N/A CE/ROHS
KLWPGR040- XXKYZ 40W 5600lm 100-277VAC 0.98at 100VAC
0.90at 277VAC
ETL/cETL,DLC
KLWPGR060- XXKYZ 60W 8400lm 100-277VAC 0.98at 100VAC
0.90at 277VAC
ETL/cETL,DLC
KLWPGR090- XXKYZ 90W 12600lm 100-277VAC 0.98at 100VAC
0.90at 277VAC
ETL/cETL,DLC
KLWPGR120- XXKYZ 120W 16800lm 100-277VAC 0.98at 100VAC
0.90at 277VAC
ETL/cETL,DLC
KLWPGR150- XXKYZ 150W 21000lm 100-277VAC 0.98at 100VAC
0.90at 277VAC
ETL/cETL,DLC
KLHVWPGR040- XXKYZ 40W 5600lm 120-347VAC >0.9 ETL/cETL,DLC
KLHVWPGR060- XXKYZ 60W 8400lm 120-347VAC >0.9 ETL/cETL,DLC
KLHVWPGR090- XXKYZ 90W 12600lm 120-347VAC >0.9 ETL/cETL
KLHVWPGR120- XXKYZ 120W 16800lm 120-347VAC >0.9 ETL/cETL,DLC


General features:

CRI:  >70                                                                                                   Color Temperature:  3000K/4000K/5000K/5700K

Life time:  >50,000 hours
Power Factor:  40W, 57W, 89W,116W: 0.98at 100VAC 0.90 at 277VAC;  42W, 64W, 89W, 121W: >0.9

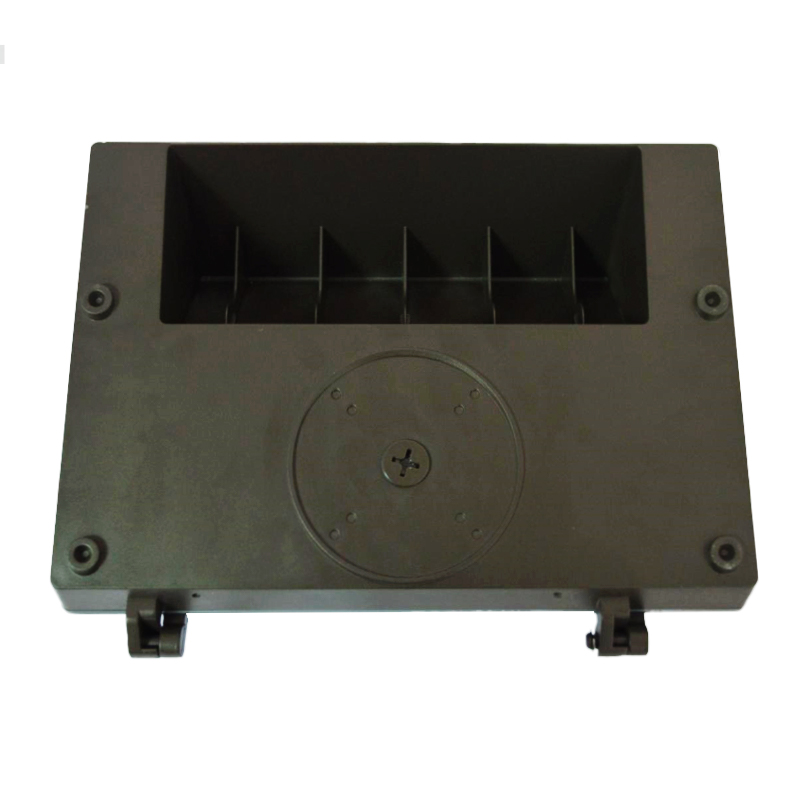

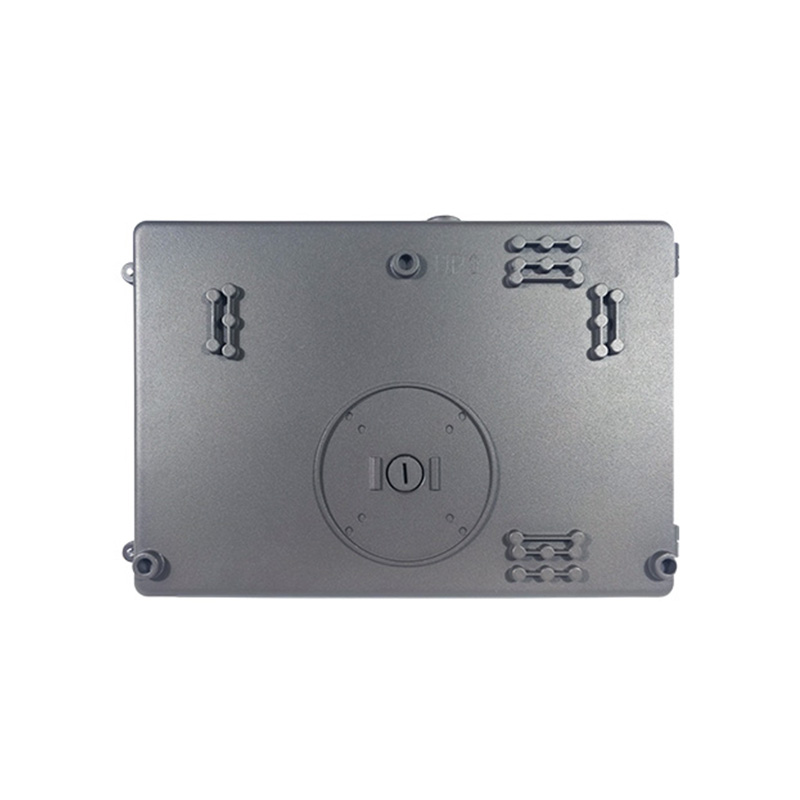

Housing:  Die-cast aluminum body(Bronze/Black). Glass diffuse             Installation:  Recessed outlet box or wall surface

Operating temperature:  -30℃ Up to 50℃ (-22℉up to122℉)                 Environment:  damp/wet locations

Warranty: 5 Years


Applications:

Wet areas / Outside walkways / Garages / Building lighting / Packing lot lighting / Entryway / Storage warehouses / Security lighting.


Packing:

Packed in cartons, the same type of products are packed together or different products packaged together.

Transportation:

For LED lights export, our main modes of transportation are air and ocean, the transit time will be 4-10 days for air or 25-30 days for ocean.

International express includes 4 types: FedEx, DHL, TNT, UPS.

Domestic express includes SF, Sto, YTO, ZTO, Baishi, and Yunda Express, Transit time 3-5 days.
