LSF Series

- Durable extruded aluminum housing LED linear high bay.
- Lumen packages ranging from 18000 lumen to 37500lm.
- Wattage selectable.
- Color temperature adjustable 2CCT 4000K/5000K.
- Polycarbonate lens with frosted diffuser or clear diffuser provided.
- 0-10V dimming optional.

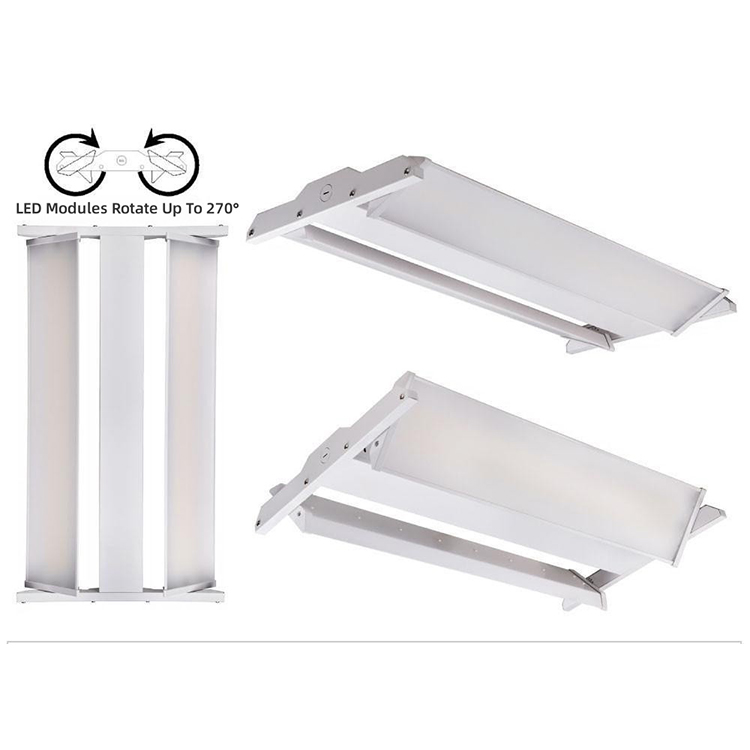

- 270° adjustable/rotating panel.

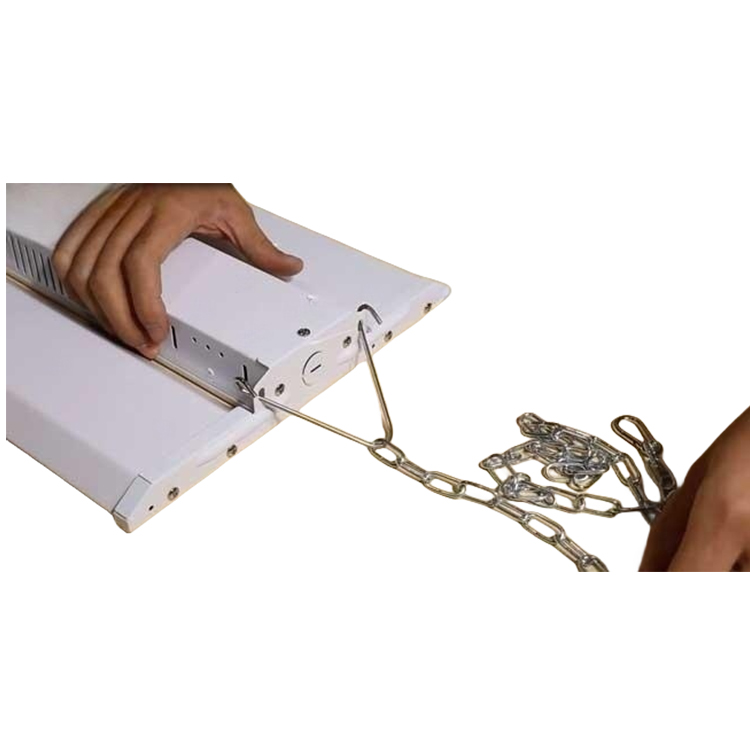

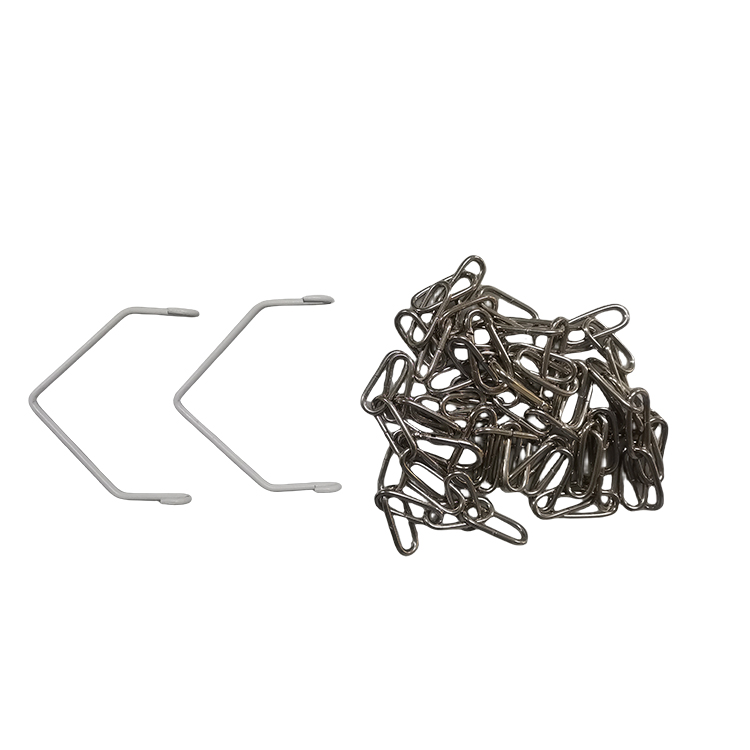

- V hooks and chains can suspend the fixture wherever you need to.
- Optional PIR motion sensor and emergency battery backup.
- 5 Years warranty.
  • Overview
  • Applications
  • Download
  • Packing & Shipping

Product Description:

The LSF Series High bay is an IP66 rated fixture for demanding industrial environments with high ambient temperatures and wet applications. Utilizing a sealed form factor, the LSF Series offers customers a rugged design with exceptional performance and high reliability. LSF LED linear high bay adopts modular design, integrated innovative aluminum heat sink for superior thermal performance and increased longevity. This energy-efficient LED luminaire offers one-to-one replacement of existing HID or fluorescent high bays. Superior performance, ultra high efficacy and premium quality provide an economic solution for high ceiling applications, especially warehouse spaces. Delivering high output, quality light and low energy consumption can improve warehouse safety and productivity, lower maintenance costs, and reduce operating costs.


Specification Power Consumption(W) Lumens
Delivered (lm)
Efficacy (lm/W) Input Voltage Certification
KLLSF-150WXXK 150W 20250lm 135lm/w 100-277VAC ETL/cETL, DLC
KKLLSF-200WXXK 200/150/100W Selectale 27000/20250/13500lm 135lm/w 100-277VAC ETL/cETL, DLC
KKLLSF-300WXXK 300/240/200W Selectable 4050l/32400/27000m 135lm/w 100-277VAC ETL/cETL, DLC

General features:

CRI: >80                                                                                                             Color Temperature: 3000K-5700K, 4000/500K Selectable

Beam Angle: 50°, 80°, 30*100°, 60*150°PC lens, 120°glass cover                     Warranty: 5 Years

Power Factor: >0.6

Operating temperature: -20°C up to 4 0°C (-4°F up to 1 0 4 °F)

Material: Aluminum

Beam Angle: 100°

Installation: Chain hanging

These luminaires are designed for optimal use in large areas such as manufacturing facilities, warehouses, cold storage, big box and retail stores, convention centers, gymnasiums, and more.


Packed in cartons, the same type of products are packed together or different products packaged together.


For LED lights export, our main modes of transportation are air and ocean, the transit time will be 4-10 days for air or 25-30 days for ocean.

International express includes 4 types: FedEx, DHL, TNT, UPS.

Domestic express includes SF, Sto, YTO, ZTO, Baishi, and Yunda Express, Transit time 3-5 days.
