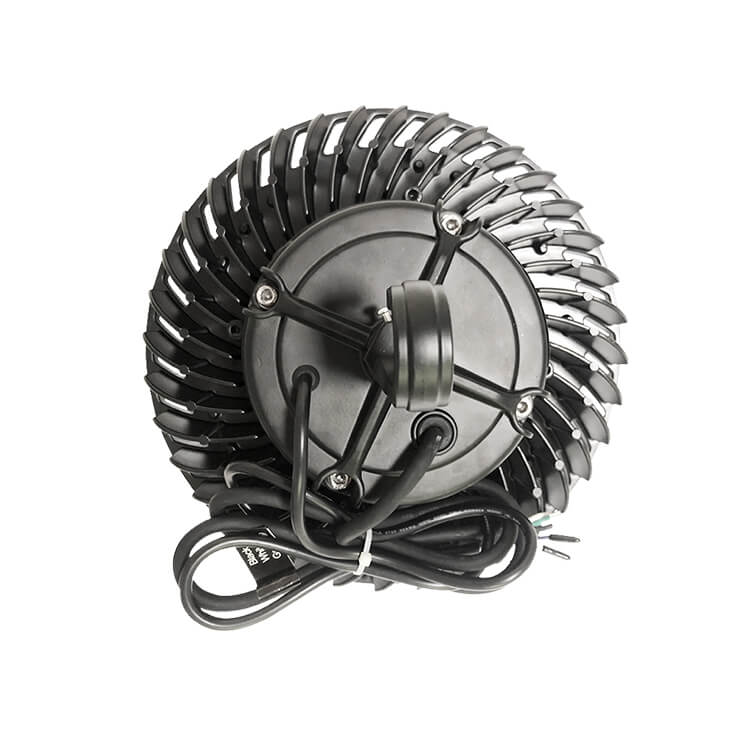

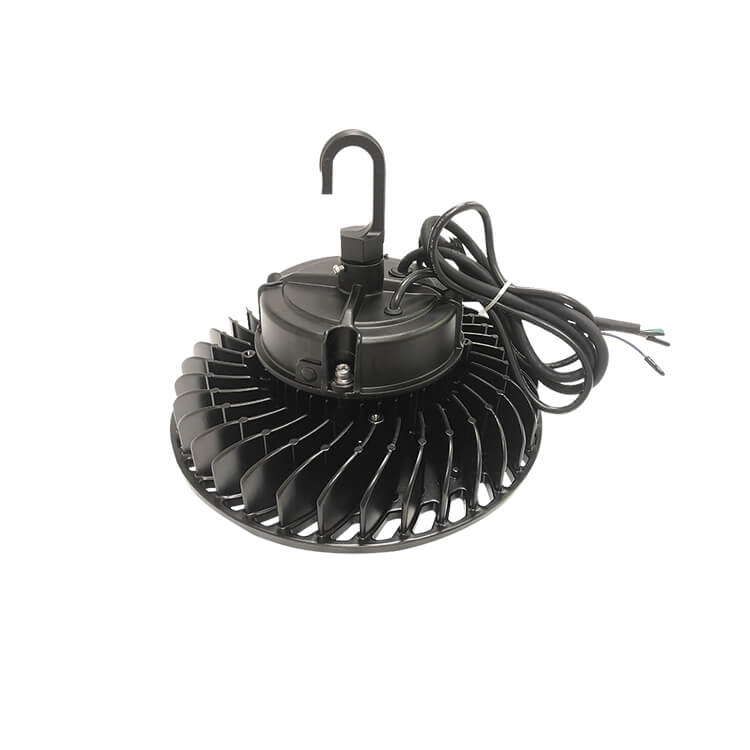

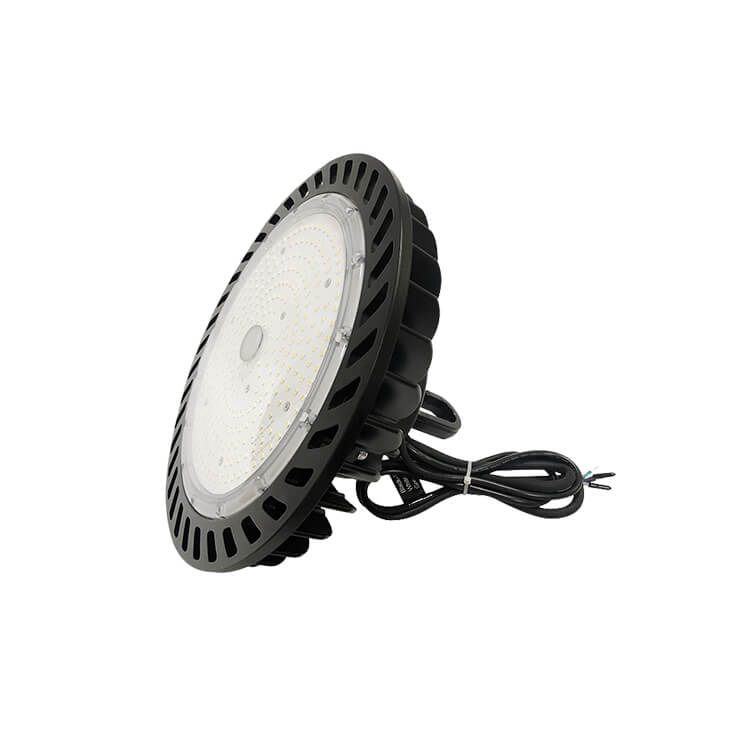

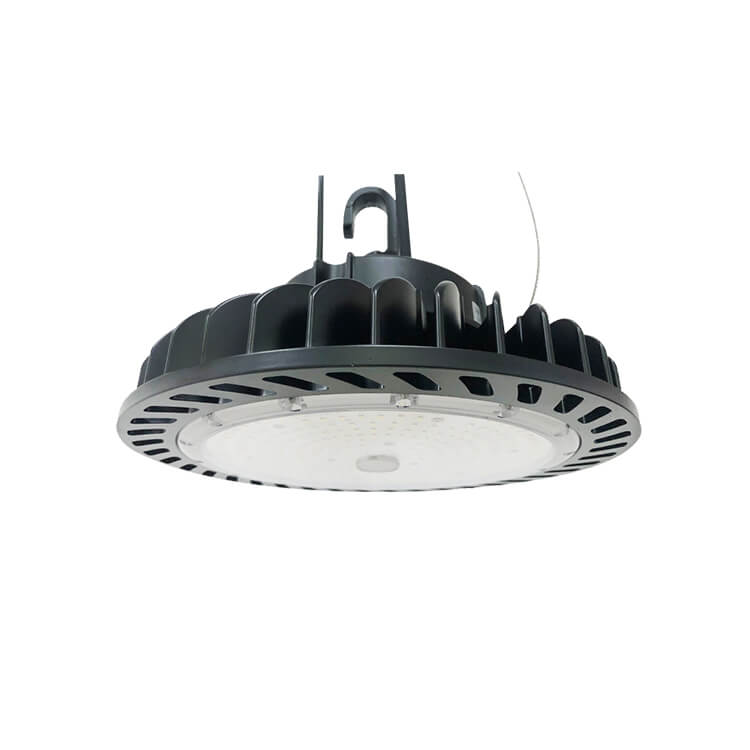

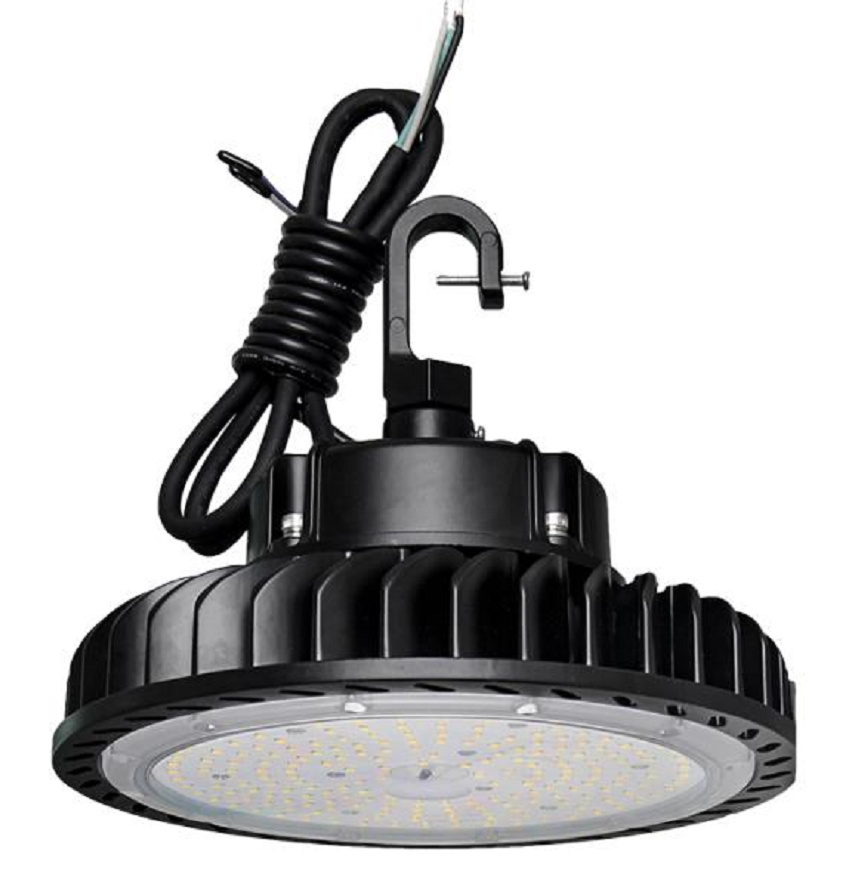

IP66 UFO High Bay LED Lights
Product description
The new generation of high bay led lights adopts the appearance of UFO, which makes it more futuristic, longer lifespan, lower maintenance and higher efficiency. Replace less-efficient traditional 500W metal halide bulb with a 31,000lms output at 240W LED. Slim body, lightweight no bulky heat sink, internal isolation high performance LED driver as well as LM80 LEDs, the UFO led high bay light can also work with 0-10V dimmer, brightness is adjustable as your desire. Preinstalled hook make it easily for a fast installation, and come with an alternative sturdy U-bracket to mount commercial high bay lighting fixtures to wall or ceiling and adjust it to achieve expected emitting angle. It's simple to replace existing lights or make a new installation. The led high bay light fixtures is ideal for commercial or industrial lighting, such as warehouses, factories, gyms, supermarkets, stadiums, retail spaces, workshops, industrial areas, garages, etc.



  • Features
  • Specification
  • Dimension
  • Transportation

Product Features:

. ETL/cETL listed for wet locations, IP66 rated

. 130 lumens per watt

. 100-277V universal voltage

. 0-10V dimming standard, 10-100%

. Microwave Motion Sensor for Bi-Level control

. Glass lens or PC lens optional





WCS IP66 UFO Highbay (Remark:XXK can be 30K 40K 50K

ITEM SPECIFICATION KLHB01100-XXKPLS-TA-1AX KLHB02150-XXKPLS-TA-1AX KLHB02200-XXKPLS-TA-1AX KLHB02240-XXKPLS-TA-1AX
Wattage(W) 100W 150W 200W 240W
Lumens Delivered (lm) 13000lm 20000lm 26000lm 31200lm
Efficacy (lm/W) 130lm/w 130lm/w 130lm/w 130lm/w
CRI >80 >80 >80 >80
Color Temperature 4000K/5000K 4000K/5000K 4000K/5000K 4000K/5000K
GENERAL PERFORMANCE Beam Angle 60°/120° 60°/120° 60°/120° 60°/120°
L70 More than 50000hours More than 50000hours More than 50000hours More than 50000hours
Power Factor  0.98at 100VAC 0.90 at 277VAC 0.98at 100VAC 0.90 at 277VAC 0.98at 100VAC 0.90 at 277VAC 0.98at 100VAC 0.90 at 277VAC
ELECTRICAL Input Voltage 100-277VAC 100-277VAC 100-277VAC 100-277VAC
Housing Die-cast aluminum body(Black). 120° Glass diffuse 60° PC Lens Die-cast aluminum body(Black). 120° Glass diffuse 60° PC Lens Die-cast aluminum body(Black). 120° Glass diffuse 60° PC Lens Die-cast aluminum body(Black). 120° Glass diffuse 60° PC Lens
Installation via cable& pendant suspension&            surface mounted via cable& pendant suspension&            surface mounted via cable& pendant suspension&  surface mounted via cable& pendant suspension&  surface mounted
PHYSICAL Operating temperature -30℃ Up to 50℃ (-22℉up to122℉). -30℃ Up to 50℃ (-22℉up to122℉). -30℃ Up to 50℃ (-22℉up to122℉). -30℃ Up to 50℃ (-22℉up to122℉).
Environment damp/wet locations damp/wet locations damp/wet locations damp/wet locations
Warranty 5 years 5 years 5 years 5 years
CERTIFICATION Certification ETL/cETL,   ETL/cETL,  ETL/cETL,  ETL/cETL,






For LED lights export, our main modes of transportation are air and ocean, the shipping time will be 3-7 days for air or 25-30 days for ocean.
